Description
Overview

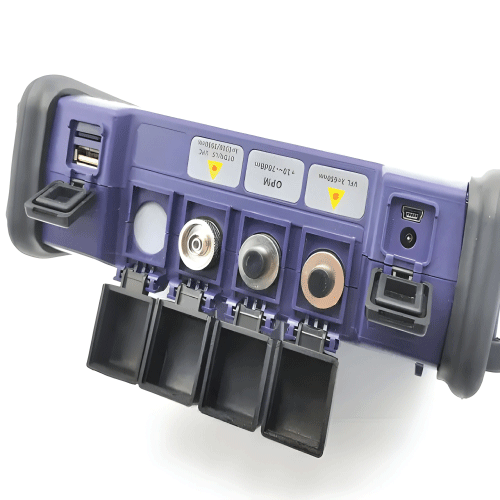

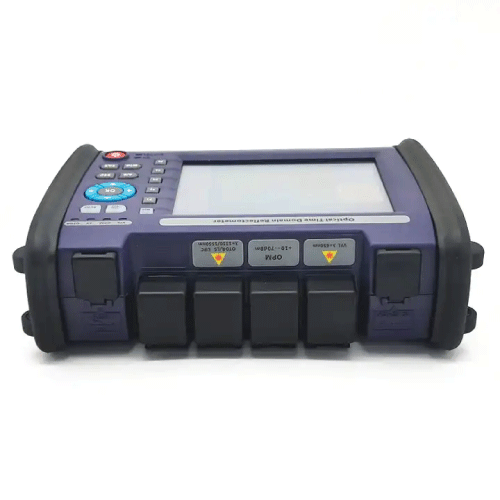

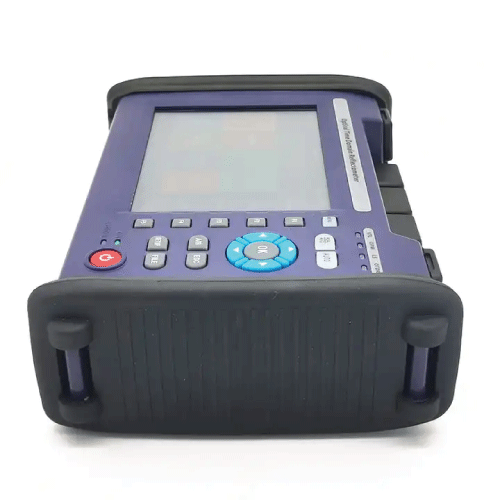

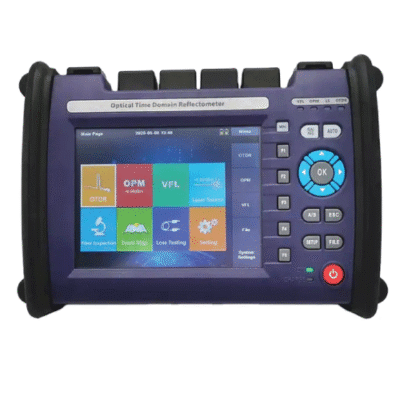

Optical Domain Tester with 5.6-Inch Display & 2500mAh Dual Batteries integrates the OTDR or light source, optical power meter, and VFL functions in one body. It uses touch and key dual operation modes. The product has a rich external interface and can be remotely controlled through an Ethernet interface, or through two different USB interfaces, external U disk, printer and PC data communication.
Features
- Various wavelength and dynamic ranges are available
- Touch-sensitive and solid physical button work together for perfect user experience
- Excellent for short-range measurement, Dead zone: 0.8m or 4m
- Maximum sampling resolution of 5 cm (1.96 in)
- Support multiple analysis functions on testing results
- quick screen shots
- Complete user data interfaces (Type A), MINI USB, SD card
- VFL, power meter, laser source, GPS, WIFI or Bluetooth
- User friendly GUI design, easy to operate
Technical Specifications
| Display | 5.6-in (14.22 cm) TFT-LCD |
| Battery | 7.4V or 2500mAh x 2 lithium battery |
| Data Storage | 100,000 groups of curves |
| Interface | USB A Type×1, Micro-USB×1） |
| Working Temp | 14° F to 122° F (-10 ℃ to +50 ℃) |
| Humidity | ≤95%, |
| Loss Threshold | 0.01 dB |
| Linearity | ≤0.05 dB |
| Loss Resolution | 0.001 dB |
| Dimension | 8.46 in x 6.10 in x 2.67 in (215 mm × 155 mm ×68 mm) |
| Weight | 2.42 lb (1.1 kg) |
