Description
Overview

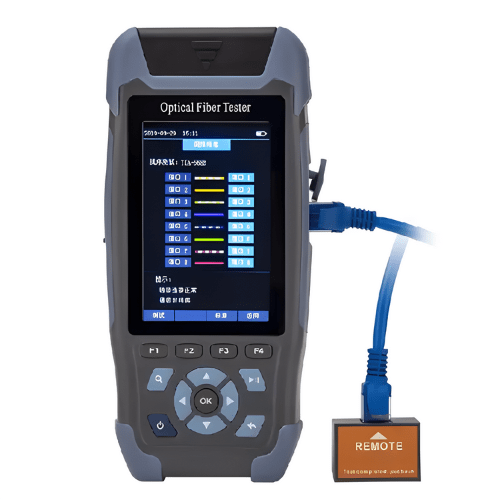

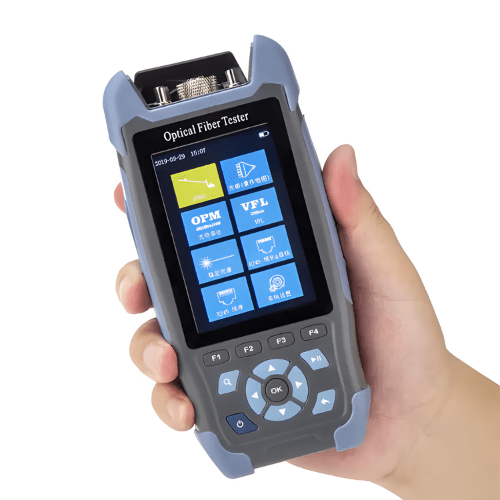

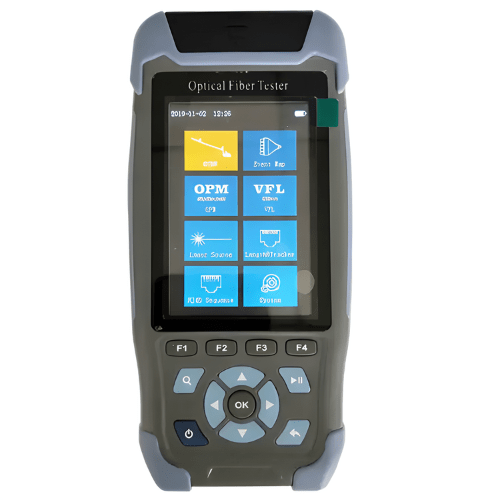

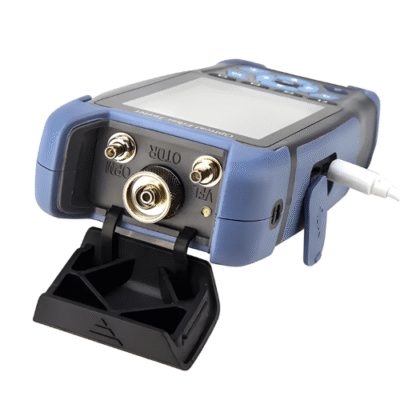

Optical Fiber Ethernet Tester with 12-Hours Battery Life is a unique product mainly designed for construction and maintenance of telecommunication and CATV networks. It can be widely used in engineering construction, maintenance test and emergency repair of all fiber optics related systems. Compared with a regular OTDR, it is more compact in size and easier for field use.
Technical Specifications
| Event Blind Zone | 9.84 ft (3 m) |
| ATT Blind Zone | 26.24 ft (8 m) |
| Pulse Width | 3 ns to 10 us |
| Ranging Accuracy | ± (3.28 ft (1 m) + Sampling interval + 0.005% × Test distance) |
| Loss Accuracy | ±0.05dB/dB |
| Sampling Points | 16 k to 128 k |
| Reflection Accuracy | ±3 dB |
| Power Supply | Polymer Li-Battery:3.7V, 4000mAh Adapter: 5 V DC, 2 A |
| Battery Life | Standby >20 hrs
Measuring time>12 hrs |
| Display | 3.5 in (8.89 cm) LCD |
| Operating Temperature | 14° F to 122° F (-10° C to 50° C) |
| Humidity | 0% to 95% |
| Storage Temperature | 40° F to 158° F (-40° C to 70° C) |
| Size | 6.81 in x 3.22 in x 1.45 in (173 mm x 82 mm x 37 mm) |
| Weight | ≤0.77 lb (≤350 g) |
