Optical Fiber Network Length Breakpoint with Compact Design – Asset Track Pro

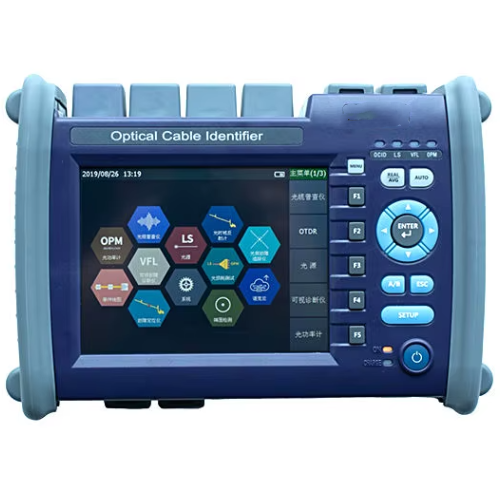

Portable OTDR tester for fiber network length, breakpoint, and loss analysis, featuring a touch screen, durable design, and Wi-Fi connectivity.

SKU: ATPFOET-176 Category:

Description

Features

  • Compact design
  • Accurate network diagnostics
  • 6-inch color display
  • Class II laser safety
  • User-friendly touchscreen interface
  • 1550nm wavelength range
  • Efficient fiber troubleshooting
  • Portable and lightweight
  • Versatile testing capabilities
  • Fast and reliable results



Technical Specifications

Use Home Optical Network Terminal
Network Wi-Fi
Color Blue & Grey
Small Orders Accepted
Display 5.6-in (14.2 cm) color LCD + touch screen
Wavelength 1550 nm ± 20 nm
Laser Safety Level Class II
Connector Type FC/UPC (Interchangeable SC, ST)
Max Dynamic Range (dB) 35/33/38/36, 42/40, 45/43, 32/30/30, 37/35, 32/30/30, 26/28
Pulse Width 3ns, 5ns, 10ns, 30ns, 50ns, 80ns, 160ns, 320ns, 500ns, 1000ns, 3000ns, 5000ns, 8000ns, 10000ns, 20000ns
Ranging Accuracy ± (0.75m + Sample interval + 0.005% X Test distance)
Loss Accuracy ± 0.05dB/dB
Sample Points 16k to 256k
Reflection Accuracy ± 3dB
File Format SOR Standard File Format
Loss Analysis 4-point method, 5-point method
Refresh Rate 3Hz (Typical)
Data Storage Internal: 200,000 curves; External: 4 GB
Data Interface USB, Mini-USB, 10M/100M Ethernet Port
Wavelength Range (OPM) 800nm to 1700nm
Connector (OPM) Universal FC/SC/ST
Test Scope -50 dBm to +26 dBm
Calibration Wavelength 850 nm, 980 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm, 1650 nm
Output Power ≥ -5 dBm
Stability CW, ±0.5 dB/15min (after 15 minutes of preheating)
Output Power (VFL) ≥ 10mW
Mode (VFL) CW/1Hz/2Hz
Display (Additional) 7 in (17.8 cm) color LCD + touch screen
Power Supply AC/DC adapter: Input 100V to 19V, 1.5A, Lithium battery: 7.4V, 5200mAh
Relative Humidity 0% to 95%, non-condensing
Test Range 1640.42 ft (500 m), 0.621 mi (1 km), 1.243 mi (2 km), 2.485 mi (4 km), 4.971 mi (8 km), 9.942 mi (16 km), 19.884 mi (32 km), 39.768 mi (64 km), 79.537 mi (128 km), 159.075 mi (256 km)
Event Blind Zone 2.625 ft (0.8 m)
ATT Blind Zone 19.685 ft (6 m)
Sample Resolution 0.164 ft to 52.493 ft (0.05 m to 16 m)
Working Temperature 14 °F to 122 °F (-10 °C to +50 °C)
Storage Temperature -40 °F to 158 °F (-40 °C to +70 °C)
Size 8.937 in × 6.299 in × 2.756 in (22.7 cm × 16.0 cm × 7.0 cm)
Weight 2.65 lb (1.2 kg)
