| OTDR Model |

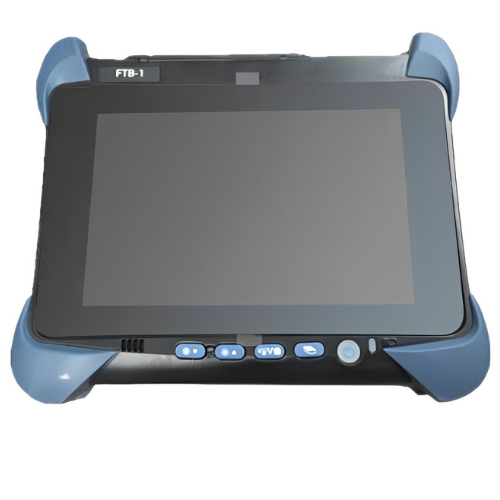

EXFO-FTB-1v2-720C-SM1 |
| Wavelength (nm) |
1310 ± 20 / 1550 ± 20 (optional: 850 ± 20 / 1300 ± 20 / 1625 ± 10) |
| SM Live-Port Built-in Filter (Option) |
1625 nm: highpass > 1595 nm, isolation > 50 dB from 1270 nm to 1585 nm |
| Dynamic Range (dB) |
36 / 35 (options: 27, 29, 35) |
| Event Dead Zone (m) |
Multimode: 0.5, Single mode: 0.7 |
| Attenuation Dead Zone (m) |
Single mode: 3.0 |
| PON Dead Zone (m) |
35 |
| Distance Range (km) |
Multimode: 0.1 to 40, Single mode: 0.1 to 260 |
| Pulse Width (ns) |
Multimode: 25 to 1000, Single mode: 3 to 20,000 |
| Launch Conditions |
FC-connectorized |
| Linearity (dB/dB) |
± 0.03 |
| Loss Threshold (dB) |
0.01 |
| Distance Resolution (m) |
Multimode: 0.04 to 5, Single mode: 0.1 to 5 |
| Sampling Resolution (m) |
Up to 256,000 |
| Distance Uncertainty (m) |
± (0.75 m + 0.0025 % x distance + sampling resolution) |
| Measurement Time |
User-defined (maximum: 60 minutes) |
| Reflectance Accuracy (dB) |
± 2 |
| Typical Real-Time Refresh (Hz) |
4 |
| Display |
Touch screen, color, 800 x 480 TFT, 178 mm (7 in) |
| Interfaces |
Two USB 2.0 ports, RJ-45 LAN 10/100/1000 Mbit/s, Fiber inspection probe connector port (video), Built-in Bluetooth and Wi-Fi (optional) |
| Storage |
8 GB internal memory (flash); 16 GB internal memory (optional) |
| Batteries |
Rechargeable lithium-ion batteries, 8 hours operation (as per Telcordia* Bell core) |
| Power Supply |
AC/DC adapter, input 100-240 VAC, 50-60 Hz, 2 A max, output 24 VDC, 90 W |
| Computer |
Intel ATOM processor, Windows Embedded Standard operating system |
| Operating Temperature |
32 °F to 122 °F (0 °C to 50 °C) |
| Storage Temperature |
-40 °F to 158 °F (-40 °C to 70 °C) |
| Relative Humidity |
0 % to 95 % non-condensing |
| Size (H x W x D) |
7.48 in x 9.92 in x 2.60 in (19 cm x 25.2 cm x 6.6 cm) |
| Weight (with Battery) |
3.3 lb (1.5 kg) |
