Description
Overview

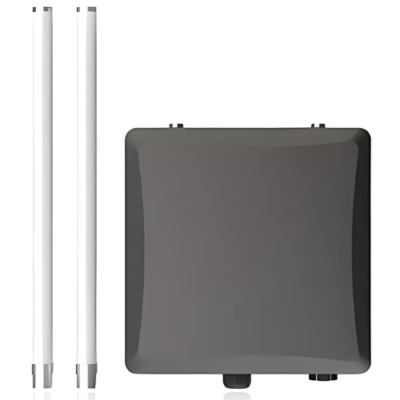

Asset Track Pro Outdoor IoT Gateway with Dual LoRa is designed for industrial environments, providing high durability with an IP67-rated enclosure. It supports various backhaul options like Wi-Fi, Ethernet, and LTE, and features dual LoRa concentrators for up to 16 channels. This device ensures stable data transmission and network resilience with built-in surge protection, PoE capability, and advanced power supply options such as solar energy monitoring. It is ideal for M2M and IoT applications, making it a reliable solution for outdoor deployments in smart cities or remote areas.
Features
- IP67 industrial-grade enclosure
- Supports PoE and surge protection
- Dual LoRa concentrators, 16 channels
- Wi-Fi, Ethernet, LTE backhaul options
- GPS and solar power supply supported
- Built-in LoRaWAN network server
Technical Specifications
| Chipset | MT7628, DDR2 RAM 128 MB |
| Frequency | 2.4 GHz (802.11b/g/n) |
| Wi-Fi Feature | EU433/CN470/EU868/US915/AS923/AU915/IN865/KR920 |
| LoRa Feature | EU433/CN470/EU868/US915/AS923/AU915/IN865/KR920 |
| Power Supply | PoE (IEEE 802.3af), 37 V to 57 V |
| Power Consumption | 12 W (typical) |
| Ingress Protection | IP67 |
| Installation Method | Pole or wall mounting |
| Size | 11.4 in x 8.6 in x 4.5 in (29 cm x 22 cm x 12 cm) |
