Description
Technical Specifications
| Network Standard | 4G, Ethernet |
| Power Supply | AC 110V to 277V |
| Relative Humidity | ≤ 95 % (no condensation) |
| CPU | dual-core, main frequency 880MHz |
| RAM | 256MB |
| LoRaWAN Frequency Bands | CN470MHz, IN865MHz, EU868MHz, RU868MHz, US915MHz, AU915MHz, AS923MHz, KR920MHz |
| Modbus RTU Support | Active polling of Modbus RTU devices, configuration of protocol analysis templates, input for SCADA commands, direct protocol analysis and conversion to the platform |
| NPU Computing Power | Optional NPU computing power card; users can install Docker image or edge analysis applications |
| Internet Connectivity | Support for 4G, Ethernet port access, multi-network access simultaneously |

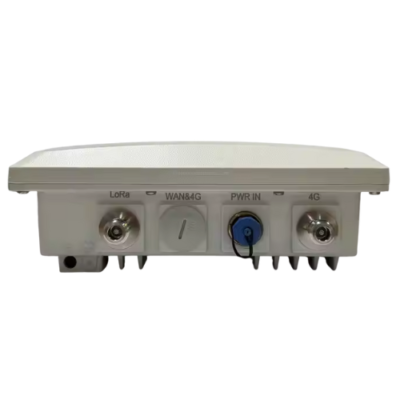

| Network Ports | 10/100/1000Mbps WAN port, 4G SIM card slot, built-in Wi-Fi, GPS, and optional Zigbee module |
| Network Performance | Stable full Netcom speed experience, compatibility with major operators’ 3G/4G networks |
| Backup Methods | Wired and wireless backup to ensure stable data transmission; intelligent switching backup during disconnection |
| Data Storage | Data storage when the network is disconnected, resuming data transmission after network recovery |
| Application | Street lighting control, IoT Application |
| Working Temperature | (-40 °C to 80 °C) -40 °F to 176 °F |
| Storage Temperature | (-40 °C to 85 °C) -40 °F to 185 °F |
| Dimensions | 8.07 in × 8.07 in × 2.91 in (20.5 cm x 20.5 cm × 7.4 cm) |
