| Application |
Smart agriculture, city, logistics, utilities |
| Power Supply |
12 V DC, PoE (IEEE 802.3 af), 40 V to 57 V DC |
| LoRaWAN Mode |
LoRaWAN™ Specification 1.0.3, Class A/B/C |
| Processor |
MT7628, DDR2 RAM 128 MB |
| Wi-Fi Frequency |
2.4 GHz (802.11 b/g/n) |
| Wi-Fi RX Sensitivity |
-95 dBm (min) |
| Wi-Fi TX Power |
20 dBm (max) |
| Wi-Fi Channels |
1 to 13 |
| LoRa Channels |
8 or 16 |
| LoRa RX Sensitivity |
-139 dBm @ 125 kHz / SF12 |
| LoRa TX Power |
27 dBm (max) |
| LoRa Frequencies |
EU433, CN470, EU868, US915, AS923, AU915, IN865, KR920, RU864 |
| Cellular Modules |
EC25-E (EU/SK/IN), EC25-AFXD (NA), EC200M-CN (China) |
| Cellular Bands |
Varies by module – LTE FDD/TDD, WCDMA, GSM/EDGE |
| Ethernet |
RJ45 (10M or 100M) |
| Console Interface |
USB Type-C |

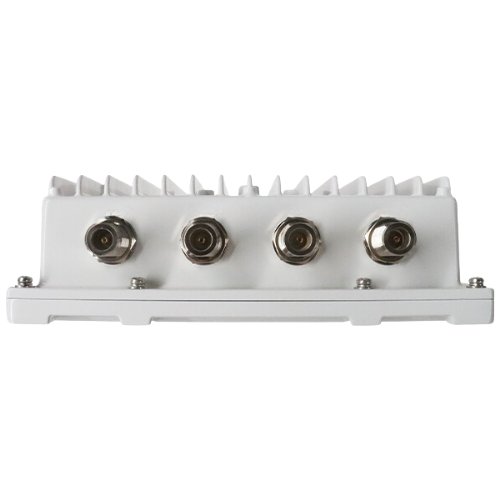

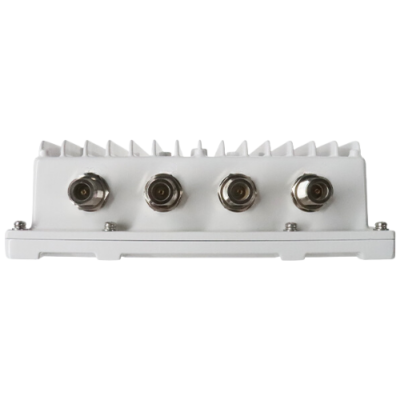

| Antenna Interfaces |
LoRa, LTE, Wi-Fi, GPS – All N Type Connectors |
| Ingress Protection |
IP67 |
| Material |
Aluminum |
| Operating Temp |
-40 °C to 85 °C (-40 °F to 185 °F) |
| Storage Temp |
-40 °C to 85 °C (-40 °F to 185 °F) |
| Humidity |
10% to 90% RH |
| Dimensions |
18.5 cm × 18.5 cm × 4.3 cm (7.28 in × 7.28 in × 1.69 in) |
| Weight |
3 kg (6.61 lb) |
