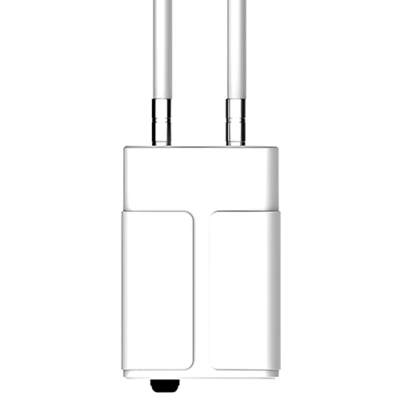

Outdoor LoRaWAN Gateway with Quad Core Processor - Asset Track Pro
Outdoor LoRaWAN Gateway with Quad Core Processor - Asset Track Pro - Image 2
Outdoor LoRaWAN Gateway with Quad Core Processor - Asset Track Pro - Image 3

Outdoor LoRaWAN Gateway with Quad Core Processor – Asset Track Pro

Discover a high-performance outdoor LoRaWAN gateway with IP67 protection, and long-range communication for industrial IoT applications.

SKU: ATPRLED-113 Category:

Description

Features

  • Quad-Core 64-bit Processor: Powerful Performance.
  • Semtech SX1302: remarkable ability to handle traffic loads.
  • Various Internet Connections: Ethernet, Wi-Fi, or 3G/4G backup.
  • Standard LoRaWAN Protocol: flexible network accessing, wide connection.
  • IP67 Waterproof: Designed for the outdoors, fearless of wind and rain.
  • Embedded Network Server: Connect to Server via TCP/HTTP/MQTT.
  • Large Capacities: Up to 2000 end node



Technical Specifications

Processor Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
Radio Chip SX1302
Frequency AU915
Tx Power 27 dBm Max
Wireless Protocol LoRaWAN, Wi-Fi, Bluetooth 5.0
Protocol V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
Ports 1 x 10/100/1000Mbps RJ45 (PoE PD supported), auto MDI/MDIX
VPN Tunnel DMVPN/IPsec/OpenVPN/PPTP/L2TP/GRE
Waterproof Rating IP67
Power Supply 802.3 af PoE Input, 12 VDC with M12 Connector
Working Temperature -40 °F to 158 °F (-40 °C to 70 °C)
Working Current Typical 3.6 W, Max 4.8 W
Power Input 1 x 802.3 af PoE Input or 12 VDC with M12 Connector
Antenna 2 x Antenna connectors
SIM Slot 1 x Mini-SIM (2FF)
Micro SD 1 x SD card slot
Dimensions 7.87 in x 7.87 in x 2.36 in (20 cm x 20 cm x 6 cm)
Weight 21.16 oz (600 g)

Description

Features

  • Quad-Core 64-bit Processor: Powerful Performance.
  • Semtech SX1302: remarkable ability to handle traffic loads.
  • Various Internet Connections: Ethernet, Wi-Fi, or 3G/4G backup.
  • Standard LoRaWAN Protocol: flexible network accessing, wide connection.
  • IP67 Waterproof: Designed for the outdoors, fearless of wind and rain.
  • Embedded Network Server: Connect to Server via TCP/HTTP/MQTT.
  • Large Capacities: Up to 2000 end node



Technical Specifications

Processor Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
Radio Chip SX1302
Frequency AU915
Tx Power 27 dBm Max
Wireless Protocol LoRaWAN, Wi-Fi, Bluetooth 5.0
Protocol V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
Ports 1 x 10/100/1000Mbps RJ45 (PoE PD supported), auto MDI/MDIX
VPN Tunnel DMVPN/IPsec/OpenVPN/PPTP/L2TP/GRE
Waterproof Rating IP67
Power Supply 802.3 af PoE Input, 12 VDC with M12 Connector
Working Temperature -40 °F to 158 °F (-40 °C to 70 °C)
Working Current Typical 3.6 W, Max 4.8 W
Power Input 1 x 802.3 af PoE Input or 12 VDC with M12 Connector
Antenna 2 x Antenna connectors
SIM Slot 1 x Mini-SIM (2FF)
Micro SD 1 x SD card slot
Dimensions 7.87 in x 7.87 in x 2.36 in (20 cm x 20 cm x 6 cm)
Weight 21.16 oz (600 g)
