Description
Overview

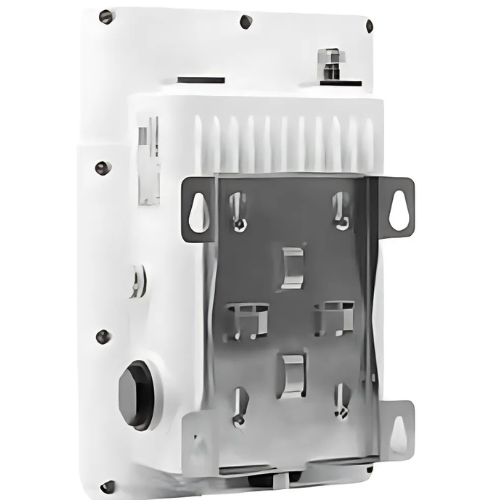

Asset Track Pro outdoor quad-core lorawan gateway is a robust outdoor LoRaWAN® gateway designed for outdoor deployments. It comes with a high-performance quad-core 64 bit CPU, with the frequency up to 1.5 GHz, and support various Internet connections: Ethernet, WiFi, 4G cellular. With the new generation LoRa chip SX1302, has higher transmit power and receive sensitivity, maximize communication distance. The product is suitable for smart energy, smart agriculture, smart parking, smart building, hydraulic management, street lamp monitoring, disaster management, industrial automation and other application scenarios.
Features
- Quad-Core 64-bit processor for powerful performance
- Semtech SX1302 for high traffic handling
- Multiple internet connections: Ethernet, Wi-Fi, 3G/4G backup
- Standard LoRaWAN protocol for flexible network access
- IP67 waterproof design for outdoor use
- Embedded network server with TCP/HTTP/MQTT connectivity
- Supports up to 2000 end nodes
Technical Specifications
| Chipset | Quad-core |
| Application | IoT |
| Processor | Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 |
| Power Supply | 802.3 af PoE Input, 12 V DC with M12 Connector |
| Working Current | Typical 3.6 W, Max. 4.8 W |
| Radio Chip | SX1302 |
| Frequency | AU915 |
| TX Power | 27 dBm (max) |
| Protocol | V1.0 Class A or Class B or Class C and V1.0.2 Class A or Class B or Class B |
| Ports | 1 × 10 Mbps or 100 Mbps or 1000 Mbps RJ45 (PoE PD supported), auto MDI or MDIX |
| Standard | IEEE 802.11 b/g/n, 2.4 GHz |
| VPN Tunnel | DMVPN or IPsec, OpenVPN, PPTP, L2TP, GRE |
