Description
Technical Specifications

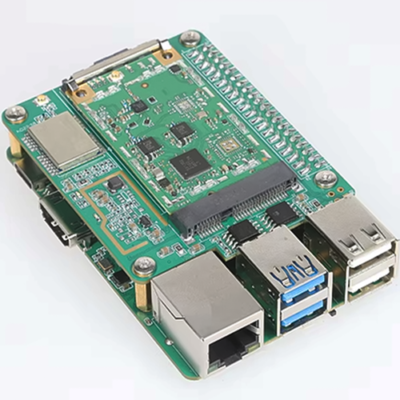

| Processor | RK3399 + SX1302 + SX1250 |
| RAM | DDR4 4GB |
| EMMC | 32GB |
| USB Port | 2 x USB 2.0, 2 x USB 3.0 |
| Ethernet | 1 x GE Ethernet |
| LoRa Transmit Power | 27 dBm |
| Supply Voltage | 5V / 3A |
| Solar Power | 15W + 15W Panel, 20Ah Battery |
| Wi-Fi and Bluetooth | 2.4 GHz / 5.8 GHz (IEEE 802.11 b/g/n/ac), Bluetooth 5.0 |
| Encryption Chip | Supported |
| Display Interface | HDMI Display |
| LoRa Module Interface | Mini PCIe |
| Optional Feature | Temperature, Humidity, GPS |
| Size | 2.2 in x 3.3 in (5.6 cm x 8.5 cm) |
