Description
Overview

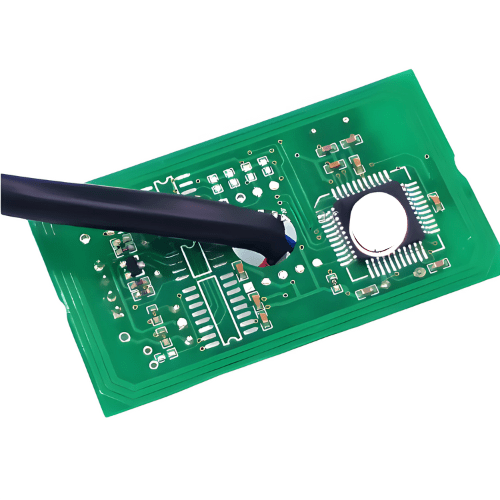

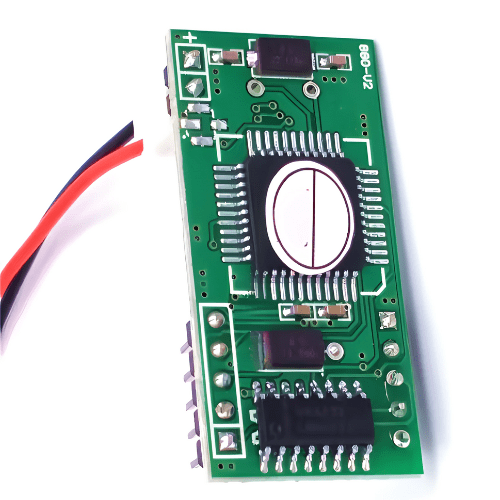

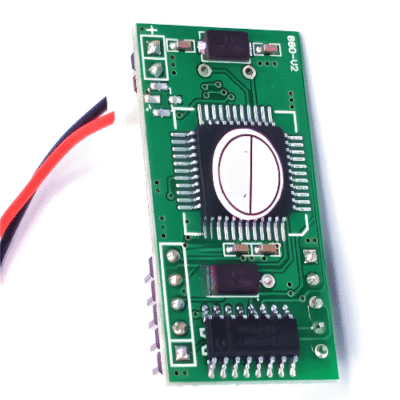

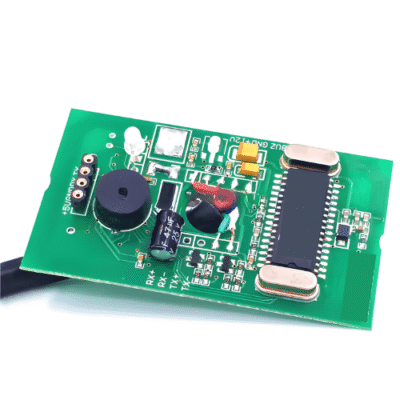

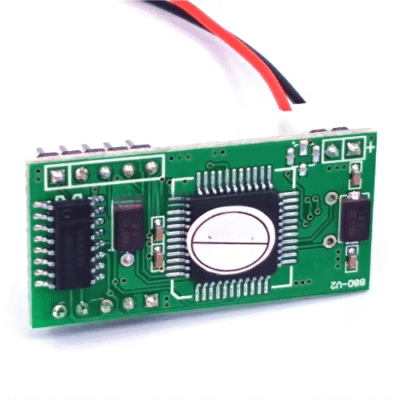

Asset Track Pro Contactless Passive HF RFID Reader Modules are for read and write contactless card, which is developed by protocol ISO or IEC 14443-1, 14443-2, 14443-3, 14443-4 and ISO 15693. It is adopted with high integration reading card chip, advanced watchdog and voltage monitoring circuit design. High degree of integration, strong anti-interference ability, small size and more stable performance. Providing basic communication protocol to facilitate the secondary development and application.
Technical Specifications
| Frequency | 13.56 MHz |
| Protocol | ISO/IEC 14443-A/B, ISO/IEC 15693 |
| Read-Write Chip | MFRC 500, MFRC 400, MFRC 531, MFRC 632 |
| Baud Rate | 9600 bps to 115200 bps |
| Support Standard | ISO 14443-A, ISO 14443-B, ISO 15693 |
| Sheathing Material | ABS |
| Power Supply | DC 5 V or 3.3 V (±5%) |
| Current | < 70 mA |
| Interface | RS 232, RS 485, TTL |
| Working Distance | 0 in to 3.15 in (0 cm to 8 cm) |
| Operating Temperature | 14 oF to 158 oF (-10 oC to 70 oC) |
| Storage Temperature | -4 oF to 176 oF (-20 oC to 80 oC) |
| Dimension | 1.52 in x 0.75 in x 0.35 in (38.5 mm x 19 mm x 9mm) |
