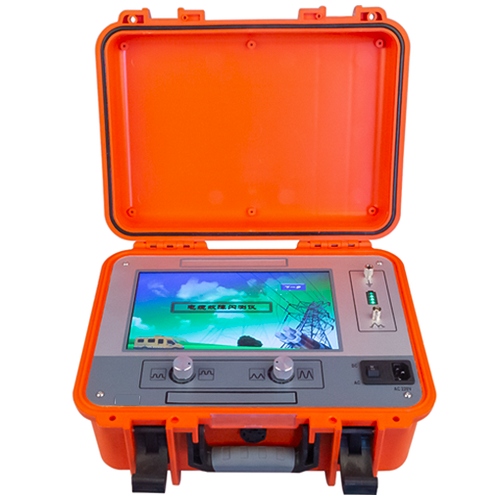

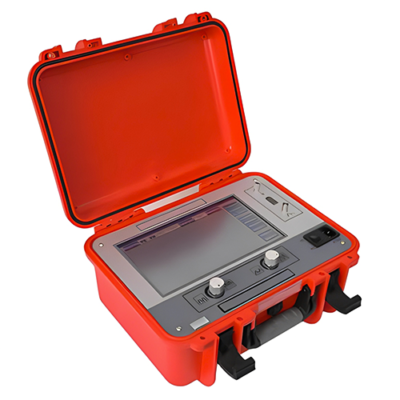

| Control System |
Industrial computer control, touch operation, strong anti-interference |
| Functions |
Fault distance measurement, pinpoint location, propagation speed, cable path, and buried depth detection |
| Test Methods |
Low-voltage pulse, flashover, audio, acousto-magnetic synchronization, valley, peak, and electromagnetic induction |
| Test Range |
Distance: 37.28 mi (60km), Detection Depth: 6.56 ft to 16.4 ft (2 m to 5m) |
| Measurement Accuracy |
Coarse: ± 32.8 ft (±10 m) or 1% relative; Fine: ± 0.33 ft (±0.1 m) for fixed point, path, and depth |
| Sampling Frequency |
100 MHz |
| Minimum Resolution |
1.64 ft (0.5 m, 100 m/µs) |
| Sampling Method |
Automatic continuous sampling, no missed discharge waveforms |
| Low Voltage Pulse |
Width: Adaptive; Amplitude: 400 Vpp |
| Output Power |
Path Power: 100 W |
| Shock High Voltage |
0 kV to 35 kV |
| Short Circuit Current |
0 mA to 320 mA |
| Burn Through Power |
0 J to 1250 J |
| Test Blind Zone |
Less than 65.6 ft (<20 m) |
| Ranging Range |
Less than 18.64 mi (< 30 km) |
| Working Conditions |
Temperature: -4 °F to 140 °F (-20 °C to 60 °C); Relative Humidity: Less than 90% |
