Description
Features
- Multichannel: Ten (10) programmable parallel demodulation paths, an 8 x 8 channel LoRa packet detector, 8 x SF5-SF12 LoRa demodulators and 8 x SF5-SF10 LoRa demodulators, one 125 / 250 / 500 kHz high-speed LoRa demodulator, and one (G)FSK demodulator
- SPI Interface: The SPI interface provides access to the configuration register of SX1302 via a synchronous full-duplex protocol
- Environmentally Friendly: RoHS complaint
- Voltage Compatibility: Voltage of mini-PCI-e is 3.3V, compatible with 3G/LTE mPCIe card
- Transmission Power: Tx power up to 27dBm, Rx sensitivity down to -139dBm @ SF12, BW125kHz
Technical Specifications
| Operating Humidity | 10 % to 90 % |
| Transmitting Power | +27 dbm |
| Frequency Band | 863 to 870MHZ, 902 to 9 |
| Power Consumption | Tx (Max) < 415 mA, Rx < 40 mA, standby 7.5 mA |
| Multi-Channel | Eight (8) uplink, one (1) downlink |
| Host Interface | SPI |
| Receiving Sensitivity | -139 dbm |
| Supply Voltage | +3.3V |
| Operating Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |

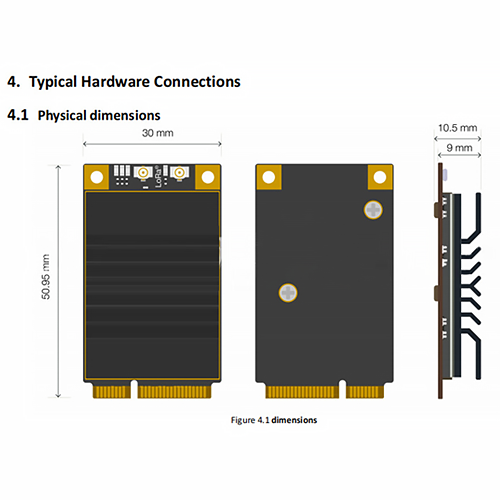

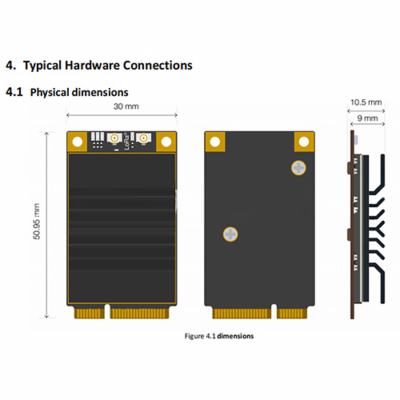

| Dimension | 2.00 in x 1.18 in x 0.41 in (5.1 cm x 3.0 cm x 1.05 cm) |
