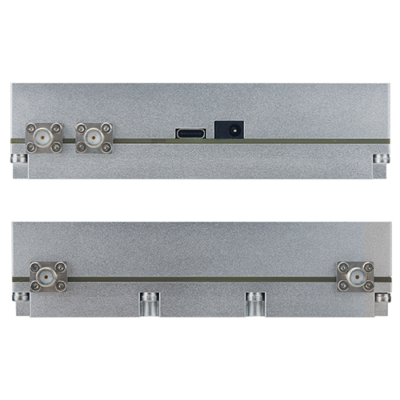

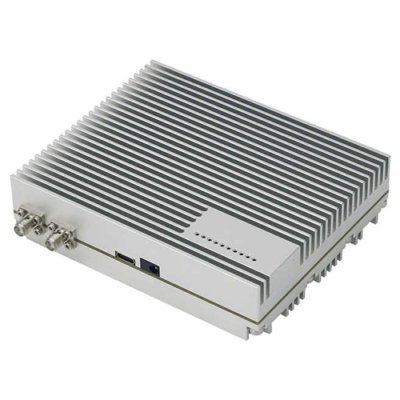

Description
Features
- Wide Frequency Range Covers 100kHz to 6GHz
- High-Speed Scans 10,000+ points in seconds
- Accurate S-Parameter Measurements measures S11, S21, S12, S22
- Upgradeable Firmware Support for easy updates of functionality
- The Multi-Function Device works as a VNA generator
- Impressive Dynamic Range that is up to 100dB dynamics achieved
- Precision CNC Shielding for aluminum housing minimizes noise
- Ultra-Low Noise Design for stable, reliable signal processing
- 16-bit ADC Utilization ensures high data accuracy
- Work-In-Progress Innovation comparable to lab-grade VNAs
Technical Specifications
| Material | Metal |
| Frequency Range | 100 kHz to 6 GHz |
| Frequency Accuracy | < 2ppm |
| Speed 2-port | 4000pts |
| Measurement Bandwidths | 10 Hz to 50 kHz |
| Dynamic Range | > 95dB to 3GHz; > 50 dB to 6 GHz |
| Reflection Directivity | > 40 dB |
| Power Supply | DC 5V, 1.5A (USB powered, or 3.5mm connector) |
| Impedance | 50 Ω |
| Test Port Connector | SMA, female |
| Output Power | -40 dBm to 0 dBm |
| Power Consumption | 7W |
| Interface | USB type-C |
| Supported Operating System | For Windows, Linux, MacOS |
| External Reference Input | 10 MHz |
| External Reference Output | 10 MHz or 100MHz |
| Weight | 1.433 lb (0.65 kg) |
