Technical Specifications

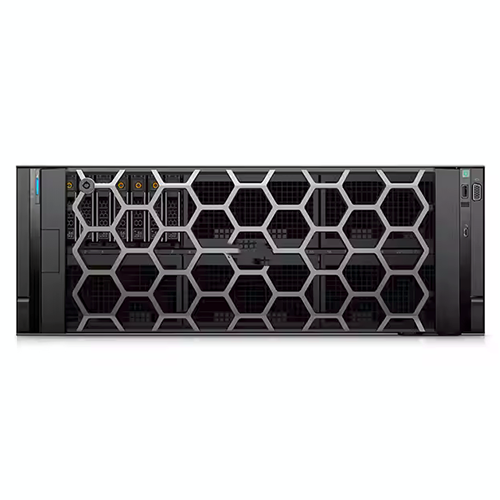

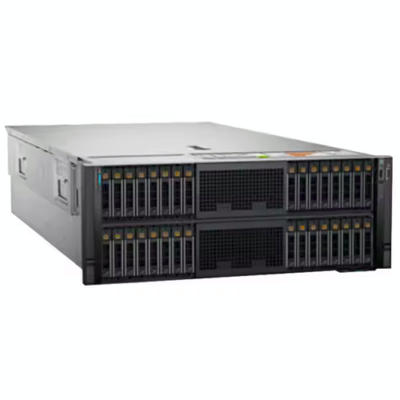

| Item | PowerEdge 4U 24 Bay Computer Data Center Rack Server |
| Type | 4U Four-Socket Rack Server |
| Processor | Up to four 4th Generation Intel Xeon Scalable processor with up to 60 cores per processor and with optional Quick Assist Technology |
| Memory | 64 DDR5 DIMM slots, supports RDIMM 16 TB max, speeds up to 4800 MTors Supports registered ECC DDR5 DIMMs only |
| Storage Controllers | Internal Controllers: PERC H965i, PERC H755, PERC H355, HBA355i Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB Software RAID: S160 |
| Drive Bays | Front bays: Up to 8 x 2.5-inch SASorSATA (HDDorSSD) max 122.88 TB Up to 16 x 2.5-inch SASorSATA (HDD or SSD) max 245.76 TB Up to 24 x 2.5-inch NVMe (SSD) max 368.64 TB Up to 16 x 2.5-inch SAS or SATA (HDD or SSD) + 8 x 2.5-inch NVMe (SSD) max 368.64 TB Up to 32 x 2.5-inch SAS or SATA (HDD or SSD) max 491.52 TB |
| Power Supply | 1100 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant 1400 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant 1800 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant 2400 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant 2800 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant |
