| Model Number |

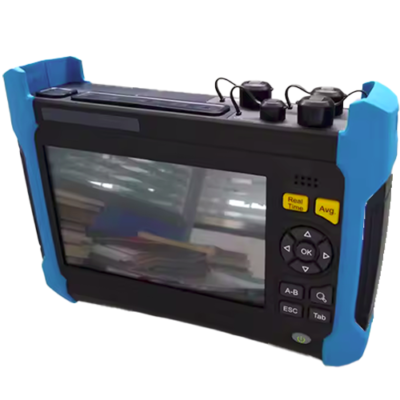

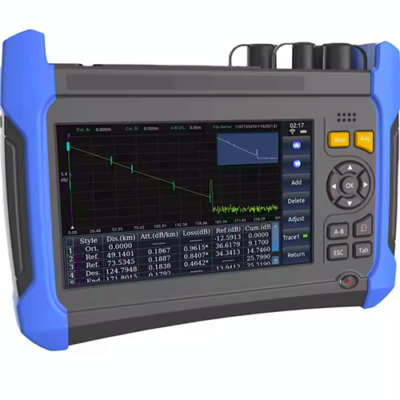

OTDR |
| Fiber Type |
G.652 |
| Standard Functions |
OTDR/OPM/VFL/LS/Event Map/Fiber End Detection/Optical Loss Test |
| Optical Output Interface |
FC/UPC, LC/UPC, SC/UPC, ST/UPC |
| Interface Language |
Chinese, English, Russian, Korean, Customization |
| External Interface |
USB, Micro-USB, 10M/100M Ethernet, Micro SD, Earphone |
| Wavelengths |
1310 nm ± 20 nm / 1550 nm ± 20 nm |
| Dynamic Range |
32/30 dB |
| Event Blind Zone |
3.3 ft (1 m) |
| Attenuation Blind Zone |
19.7 ft (6 m) |
| Test Range |
1640 ft / 3280 ft / 6560 ft / 13123 ft / 26247 ft / 52493 ft / 104986 ft / 209972 ft/ 419944 ft / 839888 ft (500 m/1 km/2 km/4 km/8 km/16 km/32 km/64 km/128 km/ 256km) |
| Pulse Width |
5 ns to 20000 ns |
| Ranging Accuracy |
± (2.5 ft + Sample interval + 0.005% x Test distance) |
| Loss Accuracy |
±0.05 dB/dB |
| Sampling Points |
16 k to 256 k |
| Sampling Resolution |
0.16 ft to 52.5 ft (0.05 m to 16 m) |
| Reflection Accuracy |
±3 dB |
| Data Storage |
Internal: ≤3000 curves; External: 4GB |
| Refresh Rate |
3 Hz (Typ.) |
| OPM Wavelength Range |
800 nm to 1700 nm |
| OPM Test Scope |
-50 dBm to +26 dBm |
| OPM Uncertainty |
±5 % |
| VFL Wavelength |
650 nm ± 20 nm |
| VFL Output Power |
>10 mW |
| Battery Working Hours |
> 10 hours |
| Relative Humidity |
0 % to 95 % non-condensing |
| Operating Temperature |
14 °F to 122 °F (-10 °C to 50 °C) |
| Storage Temperature |
-40 °F to 158 °F (-40 °C to 70 °C) |
| Dimension |
9.9 in x 7.1 in x 2.2 in (25.2 cm x 18 cm x 5.5 cm) |
| Weight |
63.49 oz (1.8 kg) |
