Description
Overview

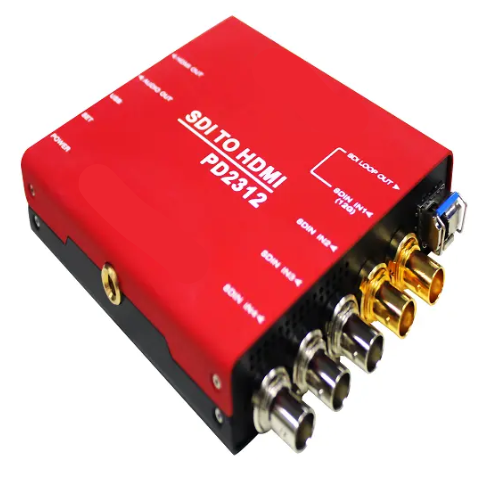

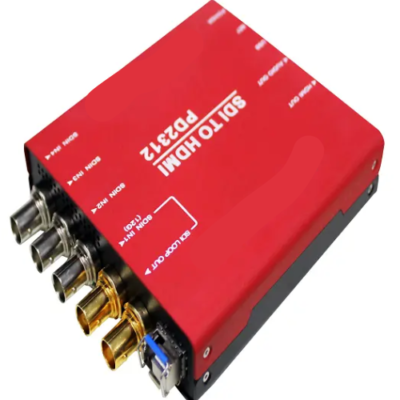

Asset Track Pro professional SDI converter with USB upgrade supported onverter integrates FRCS (frame rate conversion system), SDI receiver and HDMI encoder,it can convert SDI signal into HDMI high definition video signal. At the same time, it can also de embed the audio in SDI signal output to HDMI and analog stereo port.
It integrated link conversion function, support single link and 4 link when UHD,3G or HD SDI signal is compatible with single link.
Features
- Support single link 12 G or 6 G SDI signal input
- Support single link optical signal input
- Single link down compatible 3 G or HD
- Support UHD four link mode
- Four link mode supports Quad mode and 2SI mode
- Support SDI embedded audio de embedding
- Support SDI audio de embedding to analog stereo audio output
- USB upgrade supported
- Special functions can be customized
Technical Specifications
| Output Signal | HDMI |
| Power | 5 V to 12 V Micro |
| Consumption | 6 W |
| Storage Temperature | -4 °F to 167 °F (-20 ℃ to 75 ℃) |
| Humidity | 20 % RH to 70 % RH |
| Temperature | 32 °F to 122 °F (0 ℃ to 50 ℃) |
| Size | 4.96 in × 4.29 in × 0.98 in (12.6 cm × 10.9 cm × 2.5 cm) |
| Weight | 17.63 oz (500 g) |
