Overview

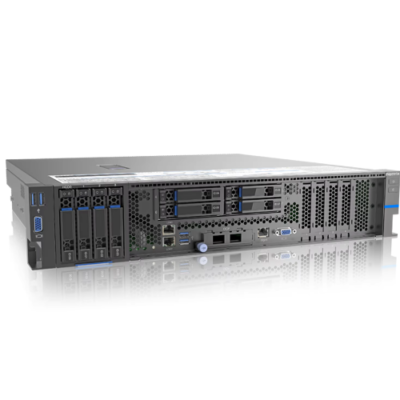

Asset Track Pro Intended for edge computing data centers with special environment, Nettrix E420 G30 Server may be arranged in any unattended edge computing room with harsh environment for handling client business nearby. It yields effects of high network bandwidth, high-reliability low-delay communication and mass interconnectivity. E420 G30 may also be combined with AI acceleration card to meet business needs for edge side training and reasoning.
Features
- 1/2 of a traditional standard server
- Full configuration and compatible with NVMe SSD
- Flexibly expandable OCP NIC
- Available for 2nd Gen scalable processors
- Available for DDR4 2933 MHz memory frequency
- Built-in FPGA or GPU card
- High-reliability technicalities are added to product design.
Technical Specifications
| Processor | Available for two 2nd Gen scalable Processor |
| Chipset | C620 series chipset |
| Memory | 16 DDR4 memory slots, 2933 MHz; available for memory ECC, memory mirroring, memory sparing and other protected modes. Compatible with four DPMM memories, 2666 MHz in full load |
| Storage Controller | Supports pass-through’ RAID0, 1, 10, 5, 50, 6, 60 and other storage solutions; when configuring RAID controllers, supports Cache, supercapacitor protection, provides RAID level migration, disk roaming, self-diagnosis, Web remote settings and other functions |
| Local Storage | Front: available for eight (6.65 cm)2.5-inch hard drives and compatible with four NVMe hard drives Built-in: one SATA or PCI-EM.2 and one SD card |
| Network Port | On-board NIC: 2 GE interfaces and 1 OCP, with NCSI function OCP can be configured with many interfaces, such as 2 X GE, 2 X 10GE and 2 X 25GE |
| PCI-E Extension | Available for expansion to five PCI-E 3.0 expansion slots, including one OCP slot Available for one full-height and full-length FPGA or GPU card |
| GPU Expansion | For GPU model, please consult Nettrix Hotline 400-898-1688 |
| Other Ports | One RJ-45 management interface at the front of the cabinet Two USB 3.0 interfaces at the front of the cabinet One VGA interface at the front of the cabinet One Micro SD card slot inside the cabinet |
| Power Supply | 550W or 1200W high-efficiency platinum hot-plug power supply, available for 1+1 power supply redundancy, voltage range: 100-240 V AC |

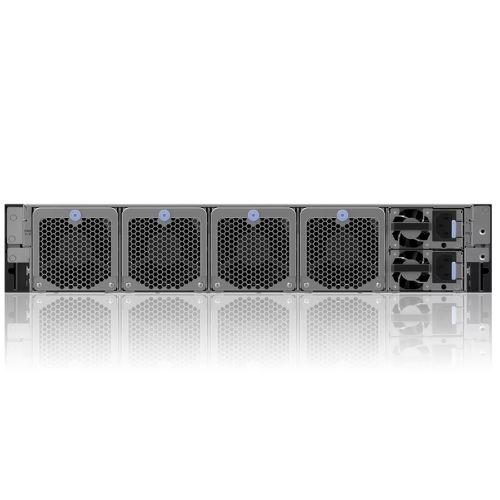

| Fan Module | 4 hot-plug fan modules, available for N+1 fan redundancy |
| Management Function | Integrated with BMC chip, provides 1 Gbps RJ45 management port externally, and supports Redfish, SNMP, IPMI 2.0 and other standard interfaces;
The remote management interface based on IKVM∕HTML5 provides comprehensive fault diagnosis, automated operation and maintenance, and remote management functions |
| Graphics Card | Integrated display controller, resolution 1920 X 1080 |
| Operating System | Microsoft® Windows Server, Red Hat Enterprise Linux, SUS Linux Enterprise Server, CentOS, Ubuntu VMware EXSI and others. |
| Working Temperature | 41°F to 113°F. (5℃ to 45℃) at work |
| Dimensions
(H X W X D) |
3.45 in x 17.56 in x 17.72 in
(87.6 mm x 446 mm x 450 mm) |
| Weight | 44.09 Ib. (20KG) |
