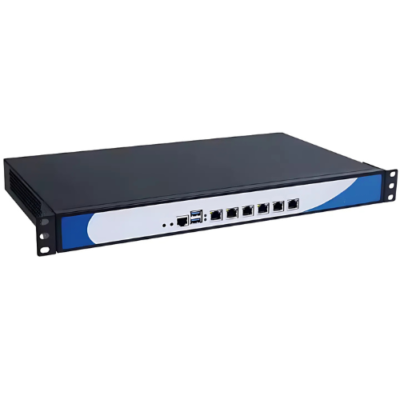

Description
Features
- Sky Lake Celeron 3855U Dual Core 1.6 GHz
- 1 x VGA + 2 x USB 3.0
- 6 x LAN + 1 x power switch
- AMI 64 MB Flash ROM
- Support RPL or PXE diskless boot
- Support Wake On LAN, electricity boot, WDT
- High-quality pure aluminum case
- Support 1 x (6.35 cm) 2.5-inch or (8.89 cm) 3.5-inch SSD or HDD
- 1 x mini-PCIE (support MSATA)
Technical Specifications
| Case Color | Black |
| Material | High-quality pure aluminum |
| CPU | Sky Lake Celeron 3855U dual core 1.6 GHz |
| Main Board | 6.69 in x 6.69 in (170 mm x 170 mm) mini ITX mainboard |
| RAM | 1 x SO-DIMM DDR3L, support max 8G |
| Storage | 1 x MSATA, 1 x (6.35 cm) 2.5-inch or (8.89 cm) 3.5-inch HDD |
| Audio | Not available |
| Display Interface | 1 x VGA |
| Display | Integrated HD Graphic card, support 1 x VGA |

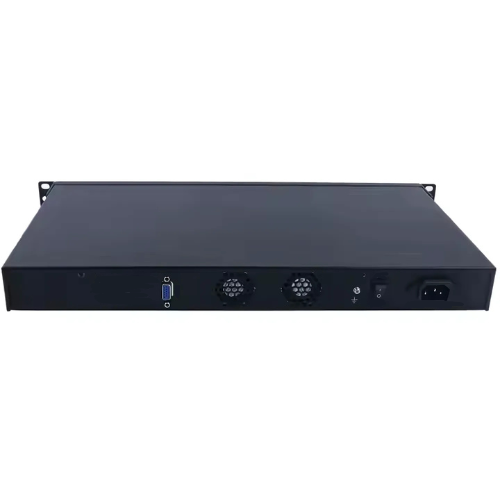

| I or O | 2 x USB 3.0, 1 x VGA, 1 x HDD LED, 6 x LAN, 1 x Power LED, 1 x Power switch, 1 x AC 220V |
| Network Card | 6 x 82583V 3280.8 ft (1000 m) LAN, support wake on LAN |
| Expansion | 1 x mini-PCIE (support MSATA), 1 x M.2 slot (support WIFI or 3G or 4G), embedded SIM slot |
| Watch Dog Timer | Support |
| Power Supply | AC 110V to 240V power supply |
| OS | Windows 7, 8, or 10, Linux, Pfsense |
| BIOS | AMI 64M DPI Flash ROM |
| Working Humidity | 0%RH to 95%RH, non-condensing |
| Working Temperature | 14°F to 140°F (-10°C to 60°C) |
| Size (L x W x H) |
17.32 in x 9.84 in x 1.75 in (440 mm x 250 mm x 44.5 mm) |
| Weight | 8.82 lb (4 kg) |
