Description
Overview

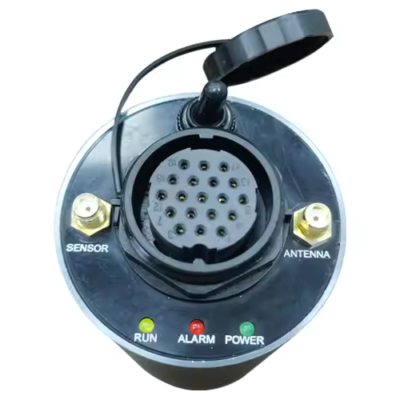

Asset Track Pro Remote Acoustic Emission Monitoring System for Leakage Detection is the Acoustic Detection Method by Receiving and Analyzing the Acoustic Emission Signals to Evaluate the Material Performances or Structural Integrity. The Deformation and Crack Propagation of Materials Under Stress are Important Mechanisms of Structural Failure. The Source Directly Related to Deformation and Fracture Mechanism is Called Acoustic Emission Source. The Elastic Wave Emitted from the Acoustic Emission Source Finally Propagates to the Surface of the Material, Causing Surface Displacement that can be Detected by the Acoustic Emission Sensor. The Sensor Converts the Mechanical Vibration of the Material into an Electrical Signal, Which is then Amplified, Processed and Recorded. By Analyzing and Inferring the Recorded Acoustic Emission Signal, the Acoustic Emission of the Material is Understood Mechanism.
Technical Specifications
| Power | Electronic |
| Customized Support | OEM, ODM, Software Reengineering |
| Application | Cracking and Leakage Monitoring |
| Principe | AE NDT Testing |
| Feature | Online Continuous Monitoring |
| Configuration | Acquisition, Platform and Customer |
| Storage Capacity | 64 GB to 512 GB |
| Data Types | Waveform, Parameters, Parameter Ratings |
| Input Range | 10 KHz to 1000 KHz |
| Signal Dynamic Range | 70 dB |
| AE Sensor Type | 12 V 34 dB, 28 V 40 dB, 5 V 26 dB |
| Channel Qty | Single Channel |
| Sampling Rate | 2 M/s |
| Sample Resolution | 16 bits |
| Available Sensor Types | Sensor with the Integrated Pre-Amplifier |
| System Noise ASL | Less than 30 dB |
| Available Waveform | Original or Waveform after Filtering |
| AE Hits Parameter Data | Arrival Time, Amplitude, Ring-Down Counts, Energy, Rise time, Duration, RMS and ASL |
| Parameter Ratings | Intensity Levels, Activity Levels and Intensity and Activity Integrated Levels |
| Data Transmission Mode | 4G, WiFi, Ethernet, RS485 |
| Power Supply | External Power Supply 12 V DC or Battery |
| Protection Grade | IP65 |
| Material | Body with Aluminum Alloy, Bottom with Megmetism |
| Working Time | Continuously 24 Hours |
| Operation Temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Cylinder Size | Φ2.44 in (6.2 cm), height 1.96 in (5 cm) |
