Description
Overview

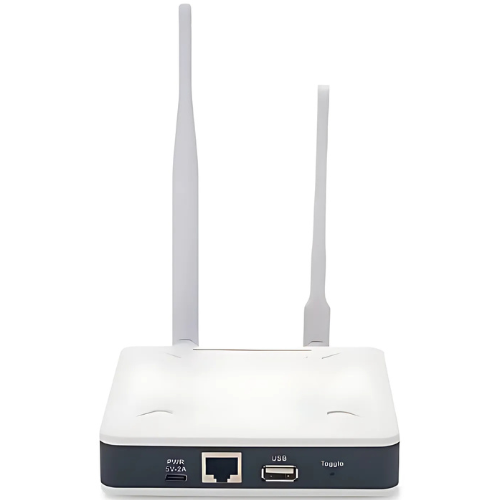

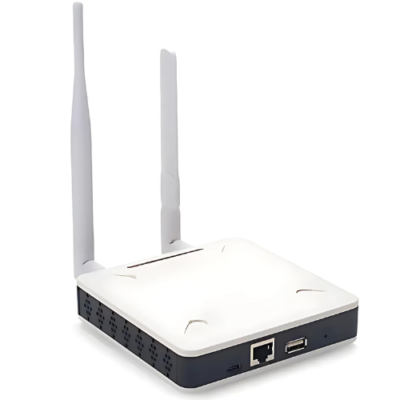

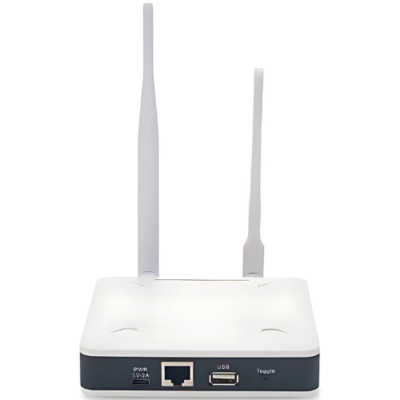

Asset Track Pro remote smart LoRa gateway with SX1302 transceiver, Wi-Fi, and USB type C power is an open source LoRaWAN Gateway. It lets you bridge LoRa wireless network to an IP network via Wi-Fi or Ethernet. The LoRa wireless allows users to send data and reach extremely long ranges at low data rates. The Semtech packet forwarder and is fully compatible with LoRaWAN protocol. It includes an SX 1302 or 03 LoRa concentrator, which provides 10 programmable parallel demodulation paths. It has pre-configured standard LoRaWAN frequency bands to use for different countries. Users can also customize the frequency bands to use in their own LoRa network. Optional cellular version that can provide 3 G or 4 G connectivity to the internet.
Features
- Open Source OpenWrt system
- Managed by Web GUI, SSH via LAN or Wi-Fi
- Emulates 49 x LoRa demodulators
- LoRaWAN gateway
- 10 programmable parallel demodulation paths
- Remote is remote management
Technical Specifications
| LoRa Spec | 1 x SX 1302 and 2 x 1250 LoRa transceiver |
| General Specification | 10 M or 100 M RJ 45 Ports x 1, 1 x 2.4 G WiFi (802.11 bgn), 1 x USB host port, power input via USB Type C 5 V or 2 A Optional 4G version |
| Frequency Band | 868 for bands EU 868, IN 865 915 for bands US 915, AU 915, AS 923, KR 920 |
| Dimension | 4.72 in x 4.72 in x 1.18 in (12 cm x 12 cm x 3 cm) |
| Weight | 6.6 oz (187 g) |
