Description
Overview

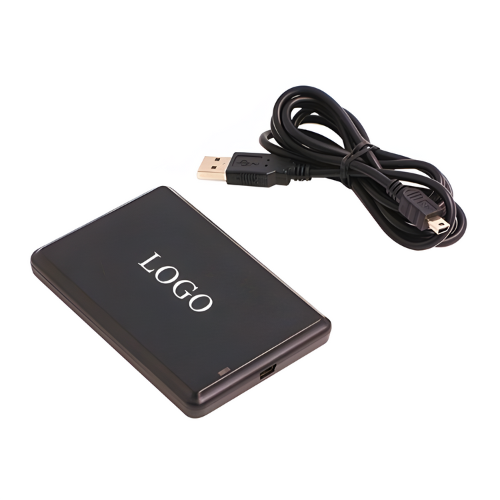

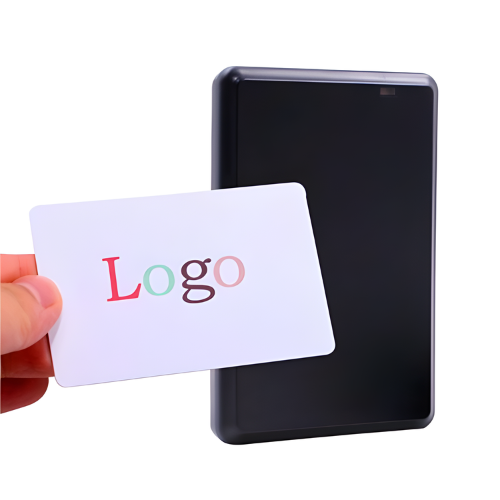

Asset Track Pro Low Cost Lf 125kHz T5577 and Em Marin Card Reader and Writer RFID is a 125Khz desktop Reader & Writer of T5577&EM4305 tags. It’s easy to operate, not only can you copy the TK4100 or EM4100 cards, but also Writable the EM4305 or T5577 cards. Widely used for RFID Radio Frequency Identification system and project, such as charge system, check-ins system etc.
Features
- Function Information encryption or decryption, payment, identification
- Structure RFID card technology for secure transactions
- Data Transmission Mode USB or serial connectivity options
- Application Field Banking, taxation, inspections, hotels, etc
- Frequency Supports 125kHz & 134.2kHz frequencies
- Support Cards Compatible with various card types
- Color Sleek black design
- Port Virtual serial port USB to RS232
- Power Supply DC 5V input
- Operating Distance Range of 0 inches to 1.9685 inches.
- Service Temperature Operates between 14°F + 158°F
- Working Humidity Maintains humidity levels below 90%
- Read Time Quick reading capability 200ms
- Read Interval Short read intervals 0.5s
- Specification Compact dimensions of 41,193.307 inches
Technical Specifications
| Frequency | 125Khz & 134.2Khz |
| Support Cards | T5557, ATA5567, ATA5577, EM4205, EM4305 etc. |

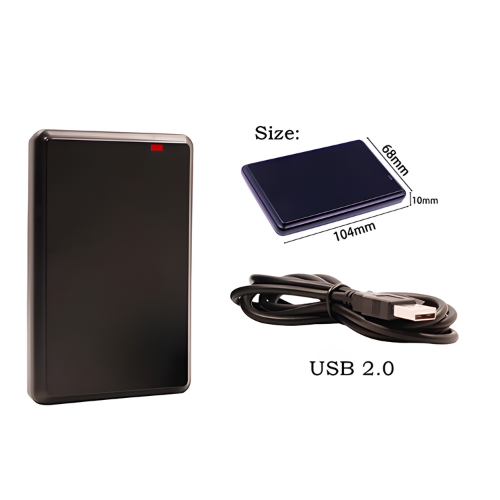

| Size | 4.0945in × 2.6772in × 0.3937in (104 mm x 68 mm x 10 mm) |
| Color | Black |
| Interface | Virtual serial port USB to RS232 |
| Power Supply | DC 5V |
| Operating Distance | 0 in to 1.96 in (0 mm to 50 mm) related to the card or the environment |
| Service Temperature | 14 °F to 158 °F (-10 ºC to 70 ºC) |
| Working Humidity | <90% |
| Read Time | <200 ms |
| Read Interval | <0.5 S |
| Weight | About 4.9386 ounces (140 g) |
| Cable Length | 55.1181in (1400 mm) |
| Material Of Reader | ABS |
| Operating System | Win XP or Win CE or Win 7 or Win 10 or LIUNX or Vista or Android |

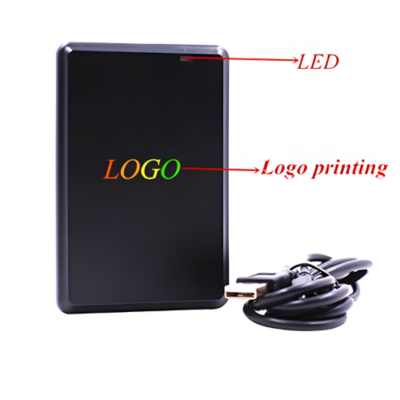

| Indicators | Double Color LED Red & Greenand Buzzer |
