Description
Overview

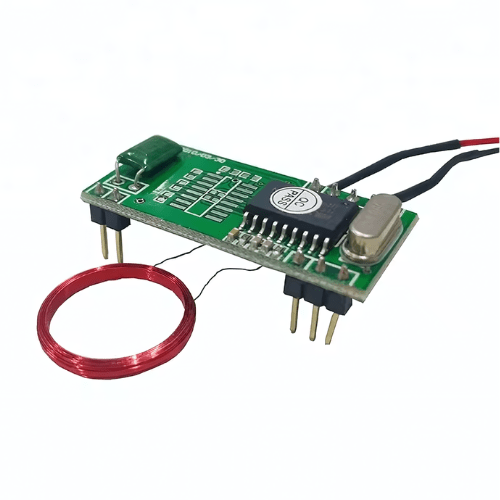

This Asset Track Pro rfid factory mini 125 khz rfid card reader module with antenna coil is rdm630 125 khz read-only module for em4100 tk4100 125 khz cards, which can read and output csn card number. It has options of wiegand26, rs232 and ttl output format.
Features
- Frequency 125 KHz
- Supporting Card EM4100 TK4200 EM4200 Card
- Interface Wiegand26 TTL RS232
- Power Supply 5 V & 3.3 V
- Antenna External Variety of optional specifications
Technical Specifications
| Frequency | 125 KHz |
| Supporting Card | EM4100, TK4200, EM4200 Card |
| Interface | Wiegand26, TTL, RS232 |
| Power Supply | 5 V & 3.3 V |
| Antenna | External Variety of optional specifications |
| Card Reading Distance | > 3.14 in (8 cm) (Depending on label size and surroundings) |

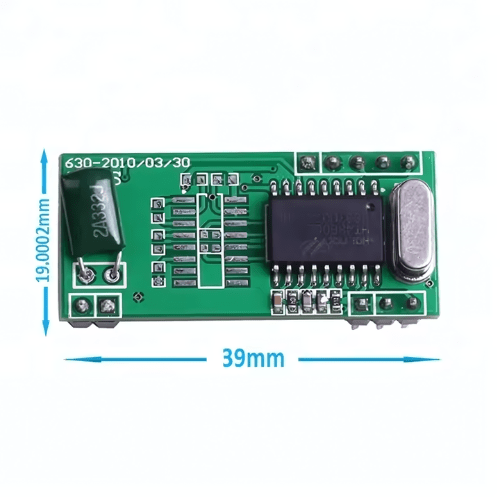

| Dimension | 1.5 in x 0.7 in x 0.3 in (39 mm x 19 mm x 9 mm) |
| Operating Temperature | – 14 °F to 158 °F (- 10 ℃ to 70 ℃) |
| Weight | 1.411 oz 40 g (0.04 kg) per pcs |
