Description
Overview

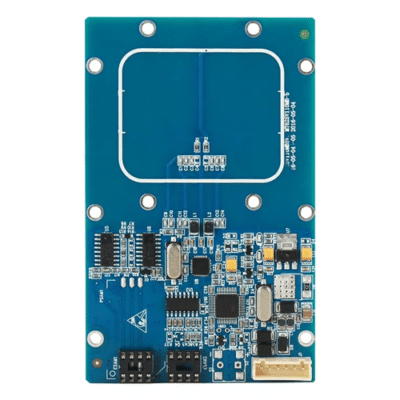

Asset Track Pro Interface Smart Reader is a card reading module, which supports ISO14443 Type A & B contactless cards and ISO 7816 smart cards. It has 2 SIM card slots for flexible PSAM & ESAM configuration. It excels in various fields, including Vehicle Charging Points, Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, Vending Machines and ID Terminals etc.
Features
- Support contactless IC card (ISO 14443 TYPE A & B)
- Support PSAM & ESAM card (ISO 7816), optional PSAM and ESAM
- Customized for charging or financial applications
- Easy and cost-effective for secondary development
- Various corresponding and custom design
- Support city card of different areas, software updated via RS 232 supported
- Carefully designed antenna size for most installation design
- Various installation dimensions design
- Temperature proof
Technical Specifications
| Card Reading Distance | 1.57 in to 3.15 in (4 cm to 8 cm) and 106 kbit |
| Interface | RS 232 or TTL (UART) |
| Baud Rate | 9600 bps, 38400 bps, 57600 bps, 115200 bps |
| Antenna | PCB Antenna |
| Frequency | 13.56 MHz |
| Communication Speed | 106 Kbit (212 Kbit & 424 Kbit PPS Commands Optional) |
| Secondary Development | VC, Linux |
| Operating System | Windows 98, Me, 2K, XP, 2003, Vista and Linux |
| Data Storage Capacity | 4 Kb |
| Status Display | LED indication light for power & communication status, user-controlled buzzer |
| Power Supply | 9 V to 12 V, ± 5% |
| Current | ≤25 mA (5 V), ≤130 mA (5 V) |
| Working Temperature | -40 °F to +149 °F (-40 °C to +65 °C) |
| Weight | 0.07 lb (32 g) |
