Description
Overview

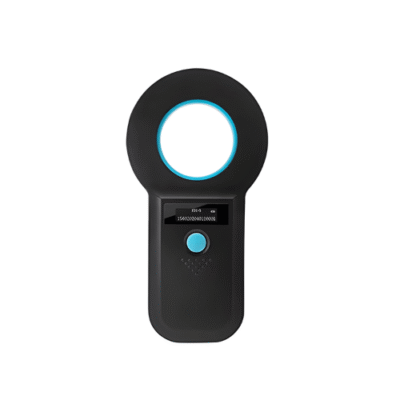

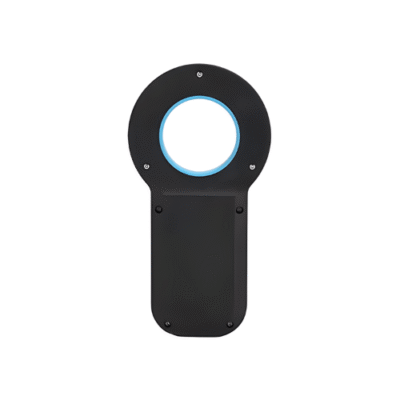

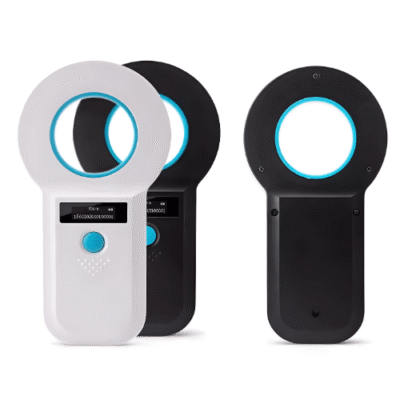

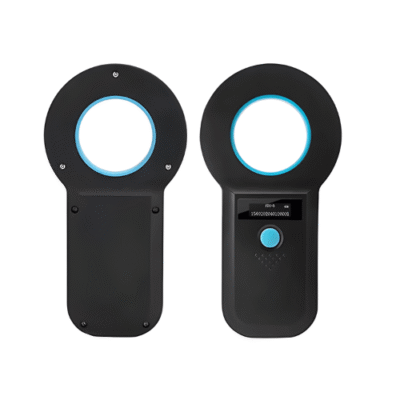

Asset Track Pro This is a low frequency tag scanner that adopt wireless identification technology and it supports reading EMID, FDX-B(ISO11784/85) etc. tag. Use high brightness OLED display which can be seen clearly in bright light environment. It can store max 128 records of tag information with its built-in memory, users can upload the information to the computer through USB cable. Stable with simple operation which is widely used for little animal management.
Key Features
- Frequency The scanner operates at 134.2 kHz
- Protocol It follows ISO11784/5 standard
- Size Dimensions are 135mm length, 60mm width, and 14mm height
- Standard Supports EMID and FDX-B (ISO11784/85)
- Display Features a 0.91-inch OLED display and buzzer
- Reading Distance Reads ear tags from >20cm and microchips from >8cm
- Battery Powered by a 3.7V lithium battery
- Communication Supports USB 2.0 and Bluetooth
- Memory Capacity of 128 records
- Language User interface language is English
Technical Specifications
| Frequency | 134.2Khz, 125KHz |
| Tag Format | EMID, FDX-B(ISO11784/85) |
| Reading/Writing Distance | 0.078 in x 0.47 in (2mm x 12mm) glass tube tag > 3.15 in (8cm) 1.18 in (30mm) ear tag > 7.87 in (20cm) (depends on tag) |
| Connect | USB2.0、 Wireless 2.4G、 Bluetooth |
| Reading Access Time | <100ms |
| Prompt | 0.91 inch high brightness OLED, buzzer |
| Power Supply | 3.7 V(Li-battery) |
| Memory | 128 records |
| Language | English |
| Work Temperature | 14∘F to 122∘F (-10℃ to 50℃) |
| Storage Temperature | −22∘F to 158∘F (-30℃ to 70℃) |
