Description
Overview

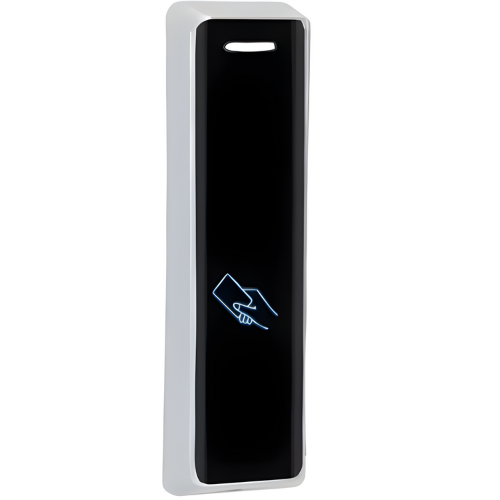

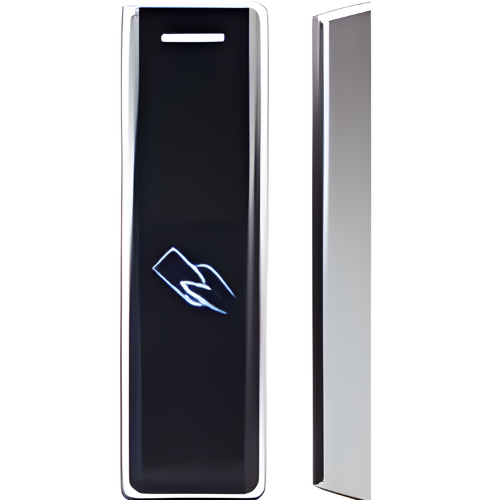

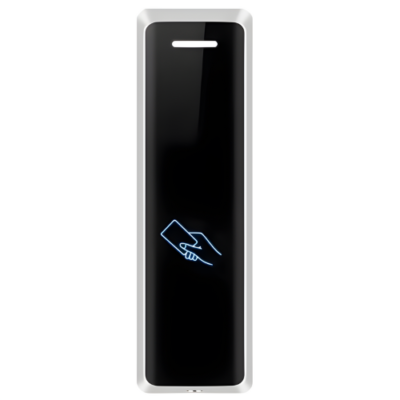

Asset Track Pro RFID 125KHz Proximity ID Card Door Reader for Access Control Systems with WG26 or 34 IP65 Waterproof is a contactless RF access control reader without buttons. It adopts the current advanced contactless IC card technology, which is safe and convenient to use. It has the characteristics of high cost performance, strong anti-interference ability, and supports various card types. Built-in high-performance microprocessor chip, suitable for access control, visitor management, access gates, unmanned supermarkets, building automation, elevator control and other fields. Supports flexible configuration of various output parameters of the card reader by swiping the configuration card, such as Wiegand format, card reading mode, user card key, card number output format, etc., so that the card reader can meet various personalized customer needs, reduce Inventory and improve service efficiency.
Features
- Product Name 125KHz RFID ID Card Reader
- Frequency Operates at 125KHz
- Interface Supports Wiegand 26 or 34 protocols
- Material Constructed with ABS frame+PCB Board
- Size Compact dimensions of 60,340.315 inches
- Waterproof IP65 rating for water resistance
- High-performance microprocessor
- Within the effective area, the data reception time is less than 120ms
- Anti-static, anti-misconnection and other multiple protections
Technical Specifications
| Frequency | 125KHz |
| Working Voltage | DC 12V (±5%) |
| Working Current | Less than 200mA |
| Working Temperature | 14°F to 140°F ( -10℃ to 60℃) |
| Storage Temperature | -4°F to 176°F (-20℃ to 80℃) |
| Working Humidity | 15% to 90% |
| Output Format | Optional WG26, WG34, WG66 |

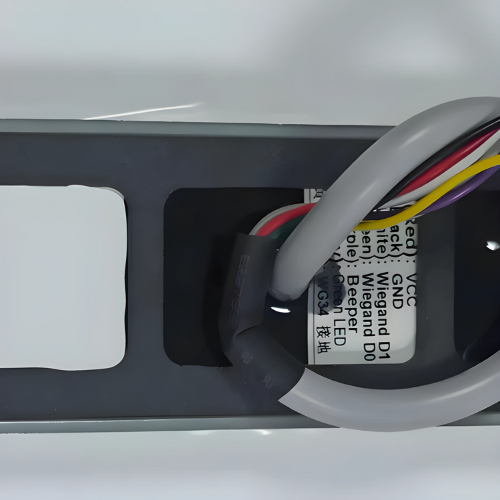

| Wiring Definition | Red (VCC); Black (GND); White(D1); Green(D0); Purple (Beer); Gray (CLED); Yellow (output WG26 connect to GND): |
| Size | 6.0236in x 1.7717in x 0.6417in (153 mm x 45 mm x 16.3 mm) |
