RFID Scan Reader Module for Low Frequency ID Cards & Tags, Electronic Label – Asset Track Pro

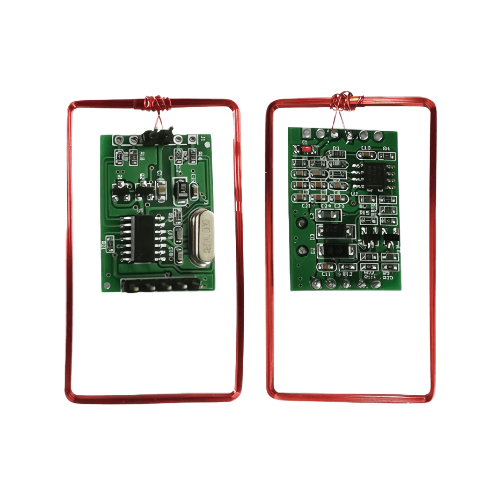

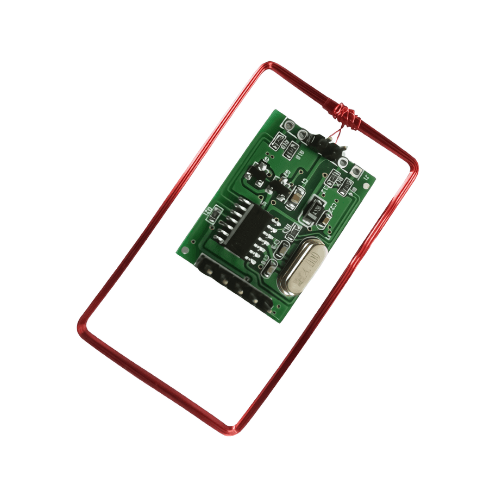

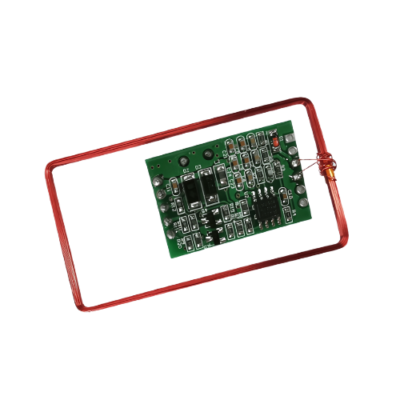

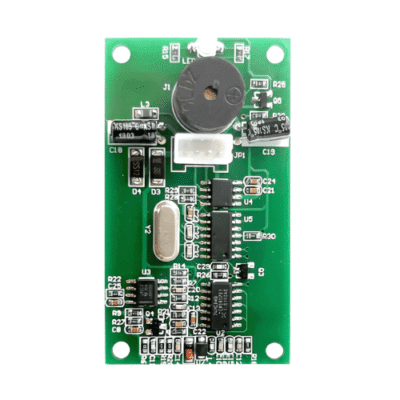

Electronic Label RFID Scan is a compact 125 KHz RFID reader module, ideal for seamless identification of low-frequency ID cards and tags, enhancing security and efficiency.

SKU: ATPLMOD-119 Category:

Description

Technical Specifications

Frequency 125 KHz
Protocol Manchester code
Card Type 125 Khz ID Card
Material PC+PCB Board
Interface Wiegand 26 or 34
Reading Distance 0.07 ft to 0.16 ft  (2 cm to 5 cm)
Operating Voltage DC 3.3 V or 5 V
Antenna External
Multi Size Optional
Reader Interval 0.5 S
Working Mode Weigand WG 26 or 34 or UART
Function RFID Chip Reading
Read Range 0 i  (0 mm to 100 mm)
Working Current <100 mA
Induction Time <0.2 S
Working Humidity 10 % RH to 90 % RH
Weight 4.93 oz (140 g)
