Description
Overview

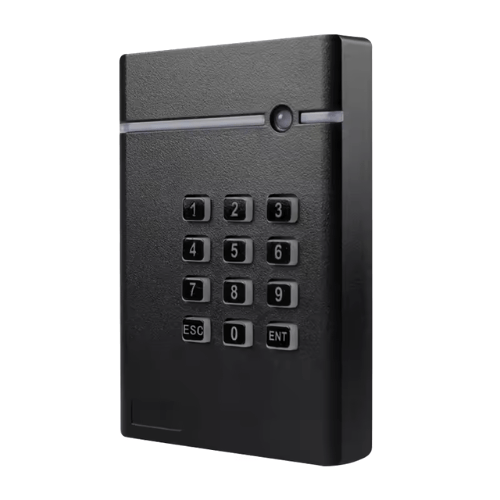

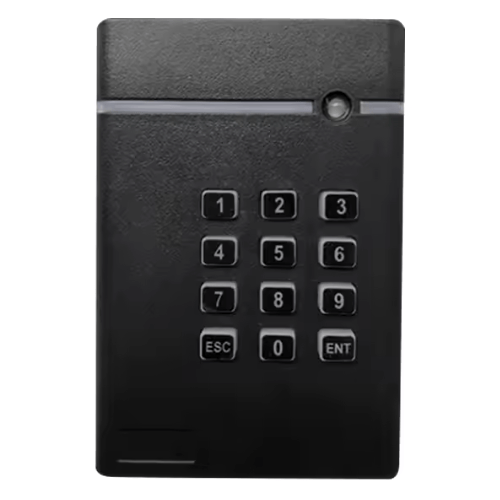

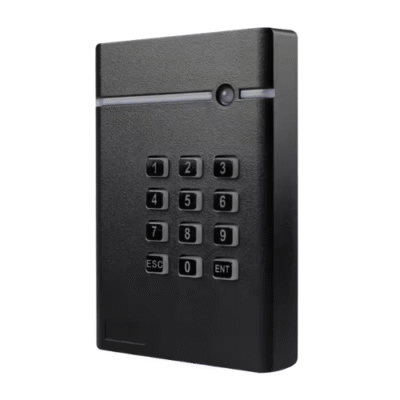

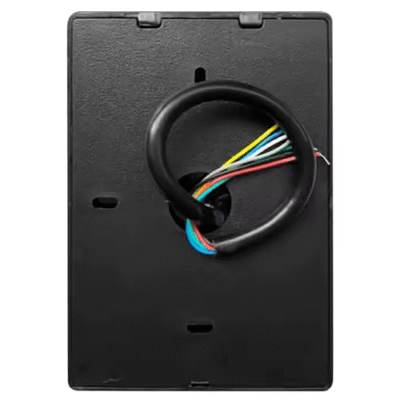

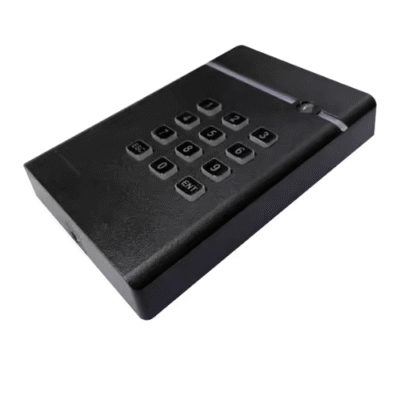

Compact, reliable waterproof RFID reader. Supports EM Card at 125KHz, with optional 13.56MHz. Versatile interface options for seamless integration.
Technical Specifications
| Frequency | 125 KHz |
| Type | Waterproof RFID Reader |
| Card Type | EM Card 125 KHz(Optional 13.56Mhz Card) |
| Interface | Wiegand 26 or34 |
| Communication | Weigand 26 or 34 or RS485 |
| Operating Temperature | -14°F to 158°F (-10 ℃ to 70 ℃) |
| Working Voltage | DC 9 V to 16 V |
| Operating Current | ≤100 mA |
| Dimensions | 4.8 in × 3.38 in × 0.787 in (12.2 cm × 8.6 cm × 2 cm) |
| Sensing Distance | 0.118 in to 0.591 in (3 mm to 15 mm) |
| Output Format | Wiegand 26 or 34, RS485 |
| Card Reading Type | EM-D or mifare-IC |
| Communication Distance | WG less than or equal to 328.084 ft (100 m), RS485 less than or equal to 3937 ft (1200 m) |
| Product Color | Black |
