Description
Technical Specifications

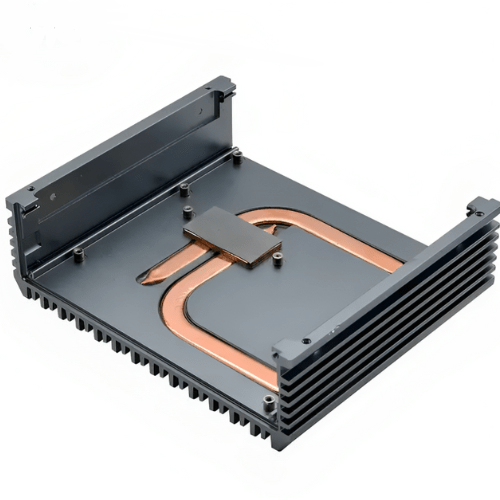

| Case | Material/Structure, Full aluminum case, fanless cooling |
| Color | Iron gray / Fog Silver |
| Installation | Desktop / Embedded |

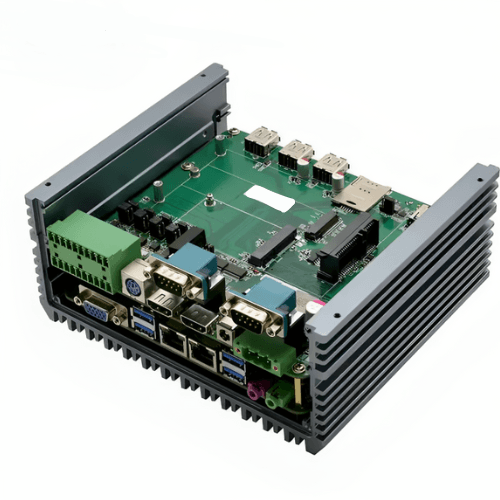

| Motherboard | CPU Onboard Intel® i5-7360U 2.3 GHz dual core 4-thread processor, TDP15W |
| Chipset | SOC |
| Display | Intel® Iris Plus Graphics 640, support DirectX 12 OpenGL 4.5 / 4K |
| RAM | 2 x DDR4 SODIMM RAM slot, 2133MHz, max up to 32GB |

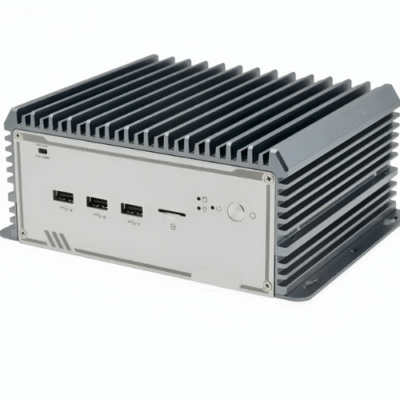

| Front I/O Port
POWER |
1 x Power Switch，1 x Reset Switch，1 x AC LOSS（auto power on switch) |
| USB | 3 x USB2.0 port，1 x USB (built-in) |
| SIM | 1 x SIM slot，3G/4G module |

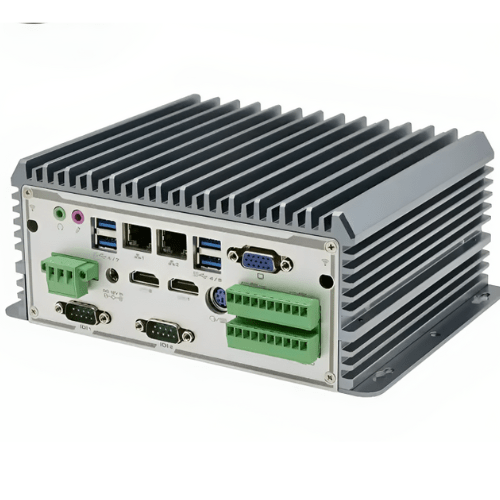

| Rear I/O Port
Display Port |
1 x VGA port，2 x HD OUTPUT1.4 port (4096 x 2304 at30Hz) |
| LAN | 2 x Intel® I211AT Gigabit Ethernet, support WOL / PXE |
| USB | 4 x USB 3.0 port |
| COM | 6 x COM port (contain 2 x RS232 DB9 COM port;4 x RS 232/485 phoenix contact , with photoelectric isolation) |
| Phoenix contact | 2 x 10 pin, support 4 x RS232/485 COM port, 4-in 4-out GPIO with photoelectric isolation, switch, 5V |
| PS2 | 1 x PS2 port |
| Audio | 1 x Line out port，1 x MIC port |
| Power Supply | 1 x DC power port, 1 x 3pin power port, support 9 to 36V power input |
| Storage
SATA |
1 x 2.5 in HDD expansion |
| SSD | 1 x MSATA SSD expansion, transfer rate up to 6Gbps |
| Expansion
Mini PCIE |
1 x Mini PCIE slot, support WIFI/4G module |
| M.2 | 1 x M.2 slot, support M.2 2260/2280 NVME PCIE x 4 SSD |
| OS support | Windows 10/Linux (not include OS code) |
| Linux | Ubuntu |
| Watch Dog | Support hardware reset function (L256, 0 sec to 255 secs) |
| Power Type | External power adaptor or open power supply |
| Voltage Input | 9 V to 36 V |
| Power output | 60 W to 180 W） |
| Environment
Operating Temp. |
14 °F to 140 °F (-10 ℃ to 60 ℃) |
| Storage Temp. | 28 °F to 158 °F (-20 ℃ to 70 ℃) |
| Relative Humidity | 5% to 95% relative humidity, non-condensing |
| Working Vibration | 0.5g rms/5-500 HZ/random/operating |
| Dimension (L x W x H) | 7.67 in × 5.82 in × 3.07 in (195 mm x 148 mm x 78 mm) |
| Weight (Net) | 3.53 lb (1.6 kg) |
