Description
Overview

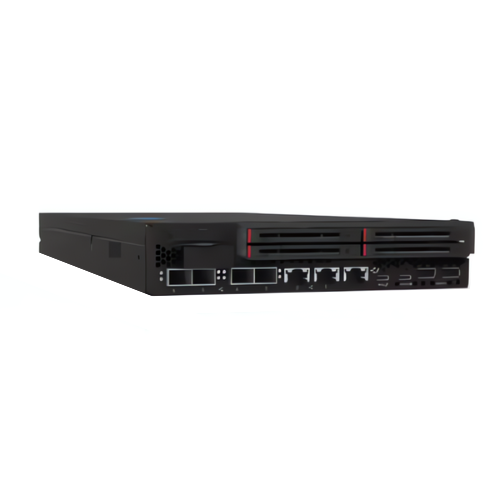

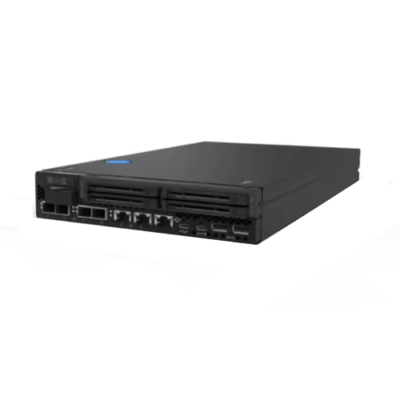

Asset Track Pro’s Rugged 1U Compact Server with Remote Management is a high-performance edge computing system designed for AI inference applications. This device is powered by the Rockchip RK3588 processor, making it suitable for AI-driven workloads. It features 8 GB of RAM, ensuring efficient multitasking and fast processing for edge AI applications. With a 6TOPS AI computing capability, this device is ideal for deep learning and real-time AI inference at the edge. This product is designed for AI applications and supports various edge computing workloads. It can be mounted on a desk, providing a compact and efficient solution for industrial and enterprise AI computing needs.
Features
- Compact form factor for space-constrained environments
- Pamper protection, and key encrypted storage
- Full remote manageability – Cloud-based
- Easy connectivity with 1G or 10G/25G wired
- and 2.5G TSN networking supported
- Suitable for harsh environments with
- extended temperature range, high shock, and vibration tolerance
Technical Specifications
| Form Factor | 1U |
| Processor | 1-socket Intel® Xeon® D-2700, up to 16 cores |
| Memory | Available |
| Storage Options | 2x M.2 2280 NVMe boot drives + 4x 2.5″ 7mm HS NVMe/SATA data storage drives 2x M.2 2280 NVMe boot drives + 2x 2.5″ 15mm HS NVMe/SATA data storage drives SED, high temperature, high capacity, and high endurance drive options Optional encryption key deletion on tamper or theft detection |
| RAID Support | RAID 0,1 for boot drives RAID 0, 1, 5, 10 for data drives |
| Mounting Options | Single node mounting for desktop, VESA*, DIN*, wall*, or ceiling* 1U2N Enclosure for two nodes side-by-side and internal power supply. Depth: 476.1mm, Height: 1U 1U2N Enclosure for two nodes side-by-side and 4x external power supplies. Depth: 771.1mm, Height: 1U 2U2N Short Depth Enclosure for two nodes side-by-side + 4x power supplies. Depth: 476.1mm, Height: 2U Locking bezels* and dust filter options |
| Power | Dual-redundant external power supplies 300W 115V/230V AC Dual DC supply: 12V-48VDC Single internal AC power supply: 500W |
| Network Interfaces (Wired) | 4x 10GbE/25GbE SFP+/SFP28 2x 2.5GbE TSN 1GbE RJ45 management port; or 4x 1GbE 2x 2.5GbE TSN 1GbE RJ45 management port |
| I/O | Front: 2x USB 3.0 (Type-A) + 1x BMC USB 2.0 (Type-C), 1x Display USB-C (USB 2.0 + Display Port (video) / USB3.2 Gen 1 auto switch), 1x BMC serial RJ45 management port Rear: 1x RJ45 Console Serial Port (can be disabled) |
