Description
Overview

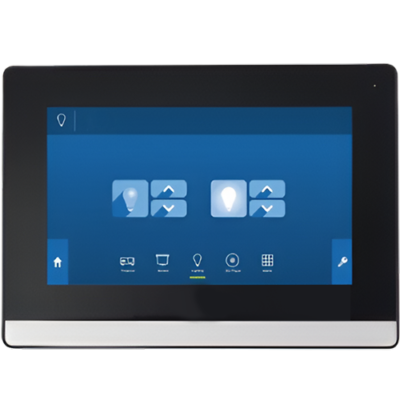

Asset Track Pro’s rugged 7-inch industrial android touch panel is built for reliable use in tough industrial environments. Powered by a quad-core Cortex-A9 processor (1.4 GHz) with 1 GB RAM and 8 GB storage, it delivers smooth performance for control and monitoring applications. The 7-inch capacitive touch display offers 1024 x 600 resolution with a long-life LED backlight. It includes multiple connectivity options such as Ethernet, RS-232, RS-485, CAN bus, USB, TF card, and audio. Optional 4G, WiFi, and Bluetooth expand its communication capabilities. With an IP65-rated front panel, it is protected from dust and water splashes, making it suitable for rugged and demanding industrial use.
Features
- 7-inch capacitive touch display with 1024 x 600 resolution
- Quad-core Cortex-A9 processor at 1.4 GHz
- 1 GB DDR3 memory and 8 GB NAND flash storage
- Wide-temperature support with LED backlight (lifetime > 25,000 hours)
- TF card slot for storage expansion
- Built-in or external speaker support with stereo audio output
- Optional 4G communication, WiFi, and Bluetooth
Technical Specifications
| Operating System | Android 4.4.2 or Android 5.1 |
| CPU | Quad-core Cortex-A9, 1.4 GHz |
| Memory | 1 GB DDR3 |
| Storage | 8 GB NAND flash |
| Display Size | 7-inch |
| Resolution | 1024 x 600 |
| Colors | 16M or 24-bit true colors |
| Backlight | LED, lifetime > 25,000 hours |
| Touchscreen | Capacitive touch |

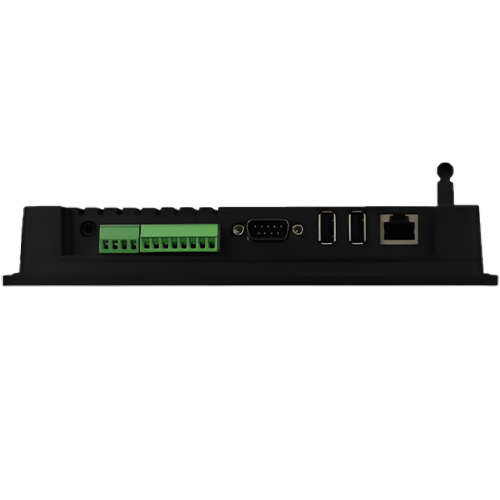

| Interfaces | RS-232 (2 channels), RS-485 (1 channel), CAN bus (optional), 100M Ethernet, USB Device (slave), USB Host x2, TF card slot |
| Audio | Stereo audio output, built-in or external speaker support |
| Wireless (Optional) | 4G, WiFi, Bluetooth |
| Power Input | DC 12 V to 24 V (24 V recommended) |
| Panel Protection | IP65 front panel |
| Material | Plastic housing |
| Installation | Embedded or wall-mounted |
| Software Support | Eclipse, Android Studio, QT Creator, Visual Studio; supports Java, C, C++, C# |
| Cutout Size | 7.56 in x 5.28 in (192.1 mm x 134.1 mm) |
| Operating Temperature | 14°F to 140°F (-10°C to 60°C) |
| Storage Temperature | -4°F to 176°F (-20°C to 80°C) |
| Operating Humidity | 10% to 90% RH |
| Dimensions | Panel size: 7.95 in x 5.67 in (202.1 mm x 144.1 mm); Depth: 1.34 in (34 mm) |
