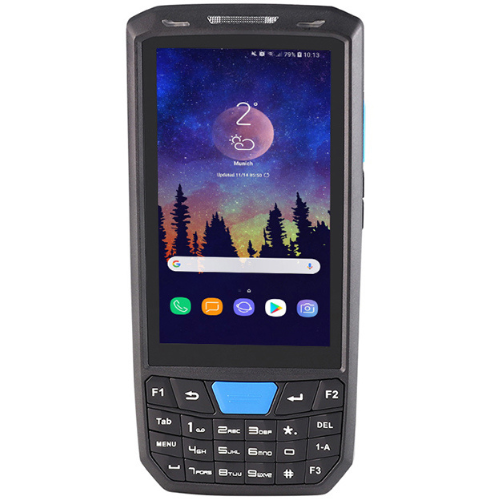

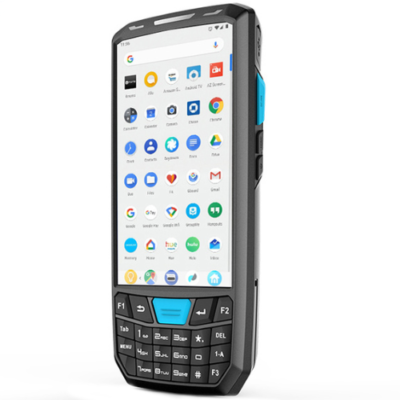

Rugged Handheld RFID Reader with WiFi Connectivity – Asset Track Pro

Asset Track Pro Rugged Handheld RFID Reader features a high-res display, quad-core processor, GPS, advanced camera, and extensive RFID protocol support.

SKU: ATPRTLR-102 Category:

Description

Technical Specifications

CPU ARM Cortex-A53 64 bit Quad-Core 1.3 G
Frequency 125 KHz
Protocol ISO 11784 or ISO 11785
RAM 2 G RAM
Flash ROM Standard 16G NAND Flash Storage
Micro SD or TF port (Max up to 32 G)
Operating System Android8.1
Camera HD 8 million pixels, with LED, automatic focusing
Wi-Fi Support IEEE802.11 b or g or n protocol, it need effective wireless LAN signal cover
Input Mode Standard Stylus, Handwriting, touching input or keyboard
Key 21 pcs soft silicon key
GPS Support A-GPS
Resolution 4 Mil minimum width
Battery Capacity Rechargeable Li-polymer Battery 3.7V 4200 mAh
Display Color 4.5 inch WVGA imitative glass durable touch screen
TFT-LCD, 650000 colors, 480 x 854 (QVGA size)
The brightness of LED Backlight is adjustable
Environment Humidity 5% RH to 95% RH (no condensation)
Operating Temperature -4 °F to 122 °F (-20 °C to 50 °C)
Storage Temperature -13 °F to 158 °F (-25 °C to 70 °C)
Dimensions 6.0 in x 3.0 in x 1.1 in (15.2 cm x 7.7 cm x 2.9 cm)
Weight 17.64 oz (500g)
