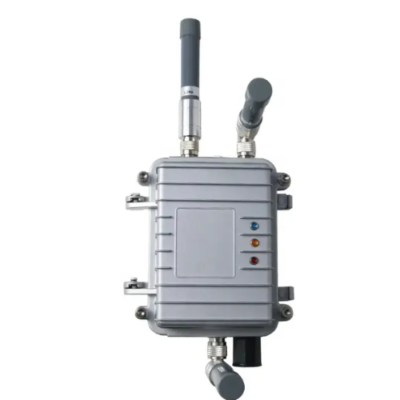

Rugged Outdoor LoRaWAN Gateway with Waterproof Housing - Asset Track Pro

Rugged Outdoor LoRaWAN Gateway with Waterproof Housing – Asset Track Pro

Unlock Seamless Connectivity with this Industrial-Grade LoRaWAN Gateway, Offering Advanced Features like PoE, MQTT, and IP67 Waterproof Protection

SKU: ATPRLED-175 Category:

Description

  Features

  • Quad Core CPU,1.5GHz, 64-bit ARM,512MB DDR4,8GB eMMC
  • Support 1Gb PoE Switch Power Supply
  • Base on the LoRa Concentrator Engine Semtech SX1302
  • Support WIFI 2.4G/5G IEEE 802.11b/g/n/ac, LTE Cat 1 4G
  • LoRaWAN Protocol  V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
  • Support BLE 5.2
  • Support GPS, GLONASS, Galileo and QZSS
  • Support IP67 Waterproof Housing
  • Support OTA
  • Support MQTT & HTTP & HTTPS
  • Support Remote Updates



  Technical Specifications

CPU Quad-core 1.5 GHz, 64-bit ARM Cortex A-35
Memory 512 MB DDR4 RAM
Flash 8 GB eMMC
Channels 8 (Half/Full-duplex)
Sensitivity -139 dBm @ SF12
Protocols Class A/Class B/Class C
Frequency 433 MHz, 868 MHz, 915 MHz, 470 MHz, 923 MHz, 920 MHz
Power Supply PoE or DC
Wi-Fi 2.4G/5G IEEE 802.11b/g/n/ac
LTE LTE Cat 1 4G
Bluetooth BLE 5.2
GPS Support GPS, GLONASS, Galileo, QZSS
Waterproof Housing IP67
Remote Updates Supported
Support for MQTT, HTTP, HTTPS Yes
Operating Temperature -4 °F to 158 °F (-20 °C to 70 °C)
Storage Temperature -22 °F to 1652 °F (-30 °C to 900 °C)
