Description
Features
- Supports LoRaWAN, NB-IoT, LTE, 3G, and 2G connectivity
- Dual-band 2.4GHz/5GHz Wi-Fi and Bluetooth support
- Industrial interfaces: RS232, RS485, DI/DO, GbE, USB
- Fanless design with wide operating temperature
- Configurable for smart city, meter reading, and IoT applications
Technical Specifications
| Chipset | Raspberry Pi |
| Application | Industrial applications |
| CPU | Quad-core A72 (ARM v8) at 1.5 GHz |
| Memory | 2GB (2GB/4FB/8GB optional) LPDDR4 |
| Flash | 8GB (16GB/32GB optional) eMMC |
| Operating System | Raspbian/ElastOS |
| Interfaces | GbE/DI/DO/RS232/RS485 |
| Network | 4G LTE, 3G, 2G, NB-IoT, CAT-M1 |
| Ethernet | 1 × Gigabit Ethernet (1-WAN or 1-LAN configurable) |
| Wi-Fi | Dual-band 2.4GHz/5GHz 802.11b/g/n |
| Bluetooth | Supported |
| GPS | Cellular Module built-in supported (optional) |
| SIM | 1 × 1.8 V/3 V; drawer-type Nano card holder 15KV ESD protection |
| Antenna | 4G: inside 1 × SMA, Wi-Fi/Bluetooth: inside 1 × SMA 1 × RS232, 1 × RS485 |
| Industrial Serial Port | RS232 signal: TXD, RXD, GND RS485 signal: A, B, GND ESD protection: 15KV |
| I/O | 2-channel digital input DI 2-channel digital/pulse output DO |
| USB | 2 × USB2.0 for peripherals 1 × USB-C for Power supply and console |
| HDMI | 1 × HDMI 2.0 (Up to 4K60p video & audio output) |
| Additional Drive | 1 × M.2 socket with 2280 NVME SSD support Standalone watchdog timer |
| LoRaWAN | Supported (Optional) |
| Power Supply | Wide Range Voltages 9V to 36V DC/1A |
| Power Terminal | Unpluggable industrial terminal connection |
| Power Consumption | Less than 10W (system) |
| (Opt.) Real-time Clock (RTC) | Embedded RTC, power supply with a supercapacitor |
| Protection | IP30 |
| Housing | Aluminum heatsink |
| Cooling | Fanless cooling |

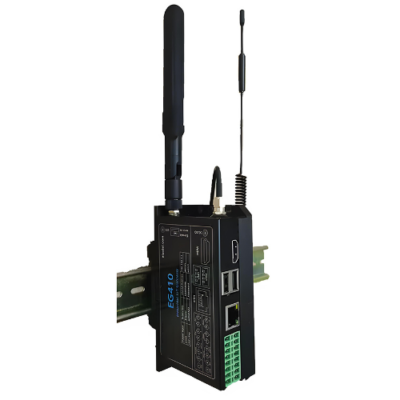

| Installation | DIN-rail, wall mounting |
| Ambient Humidity | 5% to 95% (non-condensing) |
| Storage Temperature | -22 °F to 167 °F (-30 °C to 75 °C) |
| Operating Temperature | -13 °F to 158 °F (-25 °C to 70 °C) (industrial grade) |
| Dimensions | 4.88 in × 2.99 in × 1.37 in (12.4 cm × 7.6 cm × 3.5 cm) |
