Description
Overview

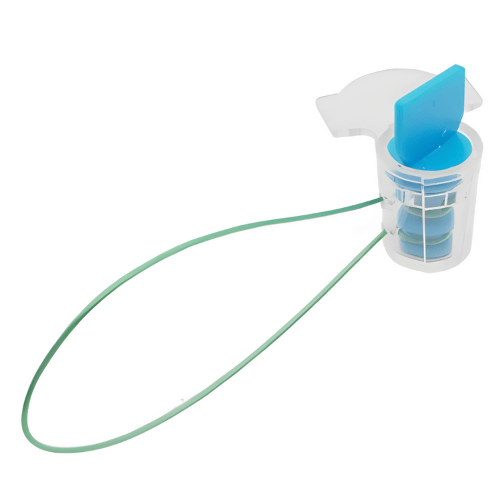

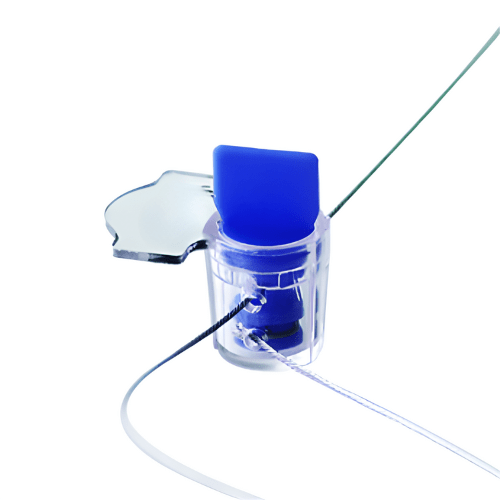

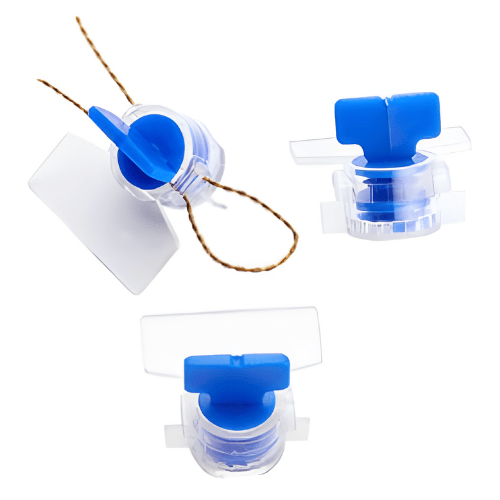

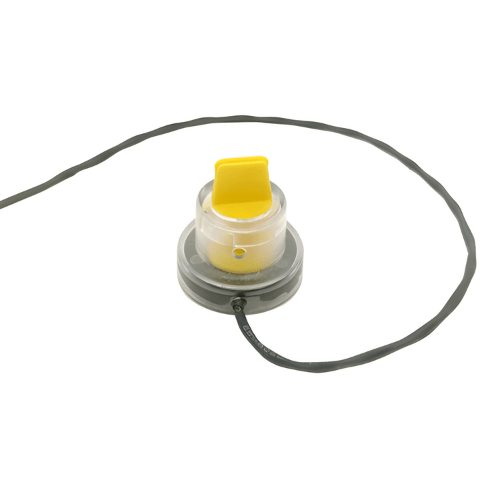

Asset Track Pro Security Seal Passive RFID Tags for Electronic Meter Tracking has Passive 125 KHz or 13.56 MHz RFID seals for meters of all types with read distance up to 20 mm and operating temperature of -40 to 70C. Functions like a regular meter seal with an RFID Tag attached for RFID meter tracking and RFID meter management. RFID Tag operates even if seal is tampered with or broken.
Technical Specifications
| Frequency | 125 khz, 13.56 MHz |
| Shape | Irregular Shape |
| Chip Type | Read or Write |
| Power Supply Mode | Passive |
| Usage | Electronic Meter Tracking |
| Material | ABS |
| Application | Electronic Meter Tracking |
| Available ICs | EM 4102 (125 KHz, 64 bit, R or O) Hitag 1 (125 KHz, 2048 bit, R or W) Hitag 2 (125 KHz, 256 bit, R or W) I-Code (13.56 MHz, 512 bit, R or W, ISO 15693 and ISO or EC 15693) |
| Standard | ISO7816, ISO14443A, ISO15693 |
| Chip Type | EM4200, EM4305, NTAG213, MF S50 |
| Working Mode | Read or write |
| Read Distance | LF or HF (0 in to 1.57 in (0 cm to 4cm)) (Reader dependent) |
| Data Retention | 10(year) |
| Anti-Collision | Yes |
| Size | 0.787 in × 0.591 in (20 mm × 15 mm) |
| Specification | 0.21 oz (6 g) |
