Description
Overview

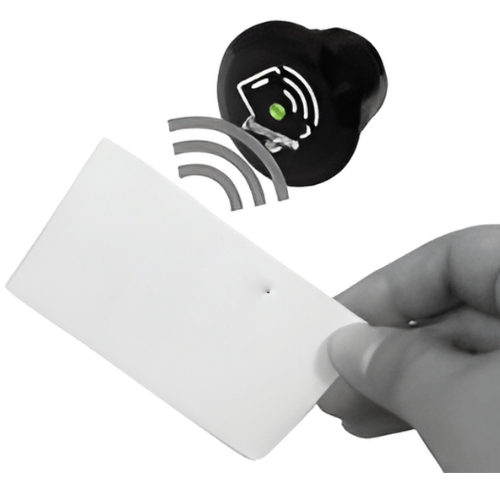

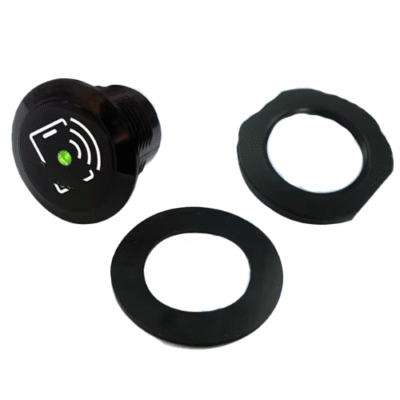

Asset Track Pro Short Range RFID Mini Ultralight Card Reader can be applied for elevator control, access control and time attendance. PP-30 with waterproof & dustproof elegant appearance and it can be easy to install in any device. PP-30 has an off-line mode and can connect with on-line controller to configure complete proximity elevator control & Access control & Time attendance management system. For different product output format, please refer to “Ordering information” for model selection.
Technical Specifications
| Frequency | 13.56 MHz |
| Protocol | ISO18092 |
| Output Format | Wiegand 26 / 34 / 40bits, ABA, UART |
| Power Input | 9~12V DC |
| Standby / Working Current | 82mA±10% @12V DC 104mA±10% @12V DC |
| Weatherproof/Dustproof | IP 54 |
| Dimensions(L)×(W) ×(H) Mm/Inch | (39.7mm)1.56 in (Diameter) |
| Installation Diameter | (31mm) 1.22inch |
| Operating Temperature | 14 F to 158 F (-10℃ to 70℃) |
| Storage Temperature | -4 F to 185 F (-20℃ to 85℃) |
| Reading Range | 3 ±1 cm |
