Single Outdoor RFID Card Reader Metal Touch Access Controller – Asset Track Pro

Durable standalone access control system supporting 3000 users, with an IP68 waterproof zinc alloy build, RFID and MF ID card compatibility, and adjustable time delay.

SKU: ATPLF-802 Category:

Description

Features

  • Frequency Operates at 125KHz
  • Material Constructed with Zinc alloy
  • Waterproof level IP68 for outdoor use (optional)
  • Indoor & outdoor Default for indoor, optional outdoor
  • User capacity Supports up to 3000 users
  • Card type Compatible with EM ID cards
  • Read range 1.9685 inches to 3.937 inches. RFID access control
  • Opening method Card, Pin, Card+Pin options
  • Wiegand WG26 or 34 input and output ports
  • Color Available in Golden, Silver, Red Bronze, Green Bronze, White Bronze



Technical Specifications

 Material  Zinc alloy
 Waterproof Level  IP68 (default indoor, outdoor optional)
 User Capacity  Support 3000 users
 Open Mode  Card or password or card+password
 Time Delay  0seconds to 255seconds (adjustable) 
 Card Type  MF ID card 
 Wiegand  WG26 or WG34 input and output port
 Password Length   4 bits
 Work Distance  1.96 in to 3.93 in (5 cm to 10 cm)

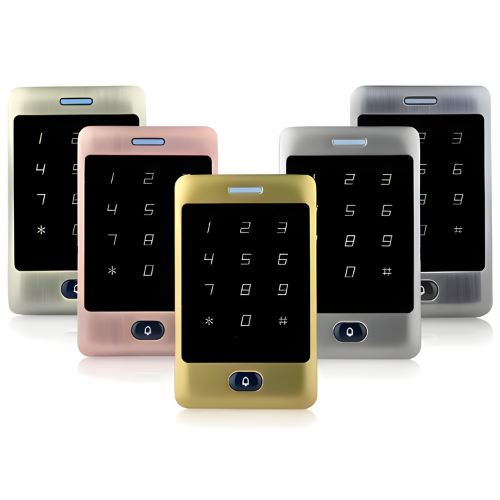

 Color  Golden, Silver, Red Bronze, Green Bronze, White Bronze
 Working Voltage  12 V DC
 Operating Temperature  –104°F to 140°F (-40 C to 60 C)
 Relative Humidity  0% to 95%

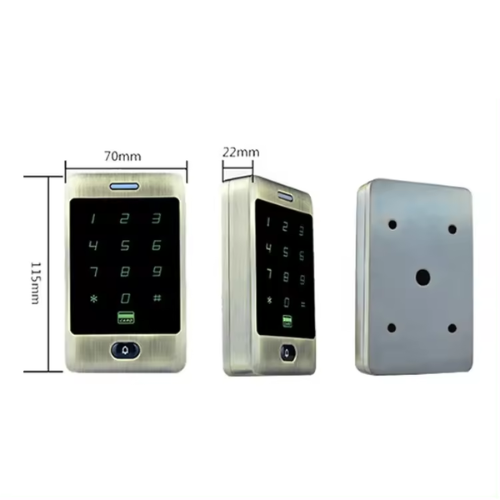

 Product Dimension  4.5276in x 2.7559in x 0.8661in (115 mm x 70 mm x 22 mm)
 Weight   1.10231 pounds (0.5 kg)
