Description
Overview

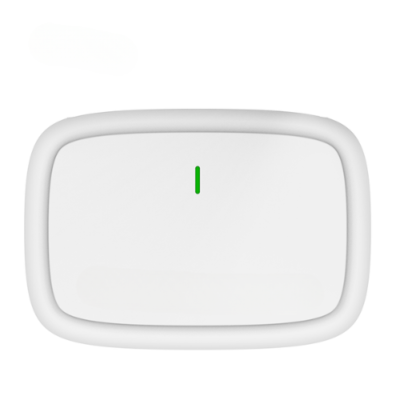

Asset Track Pro’s Smart IIoT Gateway with WiFi LTE Cat.1 and Edge Computing Security offers a wide coverage area of up to 600 meters (open area), allowing it to swiftly scan a large number of tags and sensors. This makes it an ideal choice for logistics, warehouses, retail spaces, and exhibitions with high volumes of goods and foot traffic.This device supports multiple upload channels, including WiFi, Ethernet, and 4G, and automatically switches between different network standards to ensure exceptional performance in complex settings. It seamlessly integrates with other BLE beacons, sensors, and system platforms for real-time environmental monitoring, reducing the need for manual inventory checks and other labor-intensive tasks.
Features
- Wide Coverage Area
- Multi-Channel Data Upload
- Scalable Data Throughput
- Accurate Data Scanning with Edge Computing
- High Performance Chipset
- High Security
- Easy to Upgrade and Maintenance
Technical Specifications
| Specification | Details |
| Chipset | nRF52 series |
| Application | IIoT |
| Power Source | DC 12V |
| Power Supply | DC 12V x 1A or PoE (IEEE 802.3af) |
| Network Connection | WiFi or Ethernet or LTE Cat.1 |
| Firmware Update | OTA, LAN, TF Card |
| Bluetooth Frequency | 2.4 to 2.4835 GHz |
| Network Protocol | HTTP or MQTT or TCP |
| Wireless Encryption | WPA-PSK or WPA2-PSK or WPA-EAP or WPA2-EAP and TKIP |
| WiFi Wireless Standard | IEEE 802.11 b/g/n |
| Working Humidity | 5% to 95% RH, no condensation |
| Working Temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Size (D x H) | 5.12 in x 7.32 in x 1.42 in (130 mm x 186 mm x 36 mm) |
