Description
Overview

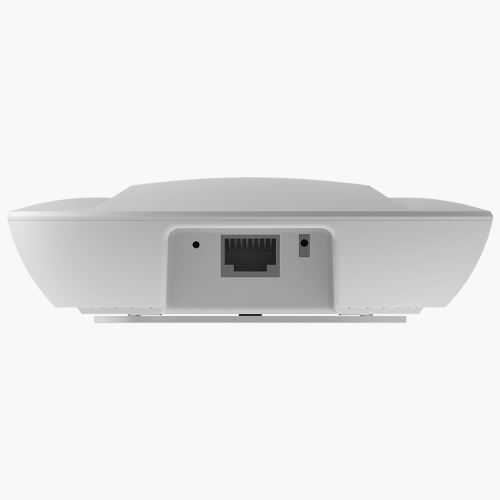

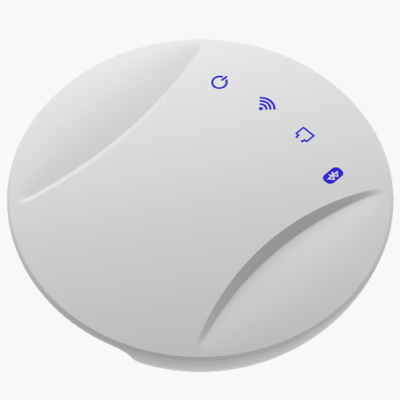

Asset Track Pro Smart IoT Gateway, is a versatile Bluetooth gateway that integrates WiFi and Bluetooth 4.2. It can be utilized in various scenarios, serving as an indoor positioning anchor or as a Bluetooth gateway to send instructions to Bluetooth devices and receive signals from devices like sensors and alarms, which are then uploaded to a backend server. Additionally, it provides WiFi internet access and can function via Ethernet. The device can be powered using a standard 5V 1A DC power adapter or is compatible with a POE 48V power supply.
Features
- Supports the POE switch power supply and 4.5 V to 12.0 V adapter power supply
- Support IEEE 802.11n, IEEE 802.11g, IEEE 802.11 b Protocol
- Support Bluetooth ® 4.2
- Small structure, light weight
- One WAN/LAN variable network port
- RoHS,FCC, CE compliance
Technical Specifications
| Parameter | Description |
| Type | IoT Gateway |
| Use | Indoor positioning, asset tracking |
| Bluetooth Protocol | Bluetooth 4.2 |
| Wireless Security | AES HW Encryption |
| Coverage Area | 32.81 ft (10 m) indoor |
| Transmit Power | – 20 to + 4 dBm |
| Receiver Sensitivity | – 93 dBm @ 1 Mbps |
| Certifications | CE, RoHS |
| Data Rate | IEEE 802.11 b Standard Mode: 1, 2, 5.5, 11 Mbps |
| WiFi Protocol | IEEE 802.11 n, 802.11 g, 802.11 b |
| Operating Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Size | 3.94 in x 3.15 in x 2.36 in (10 cm x 8 cm x 6 cm) |
| Weight | 9.87 oz (280 g) |
