Description
Overview

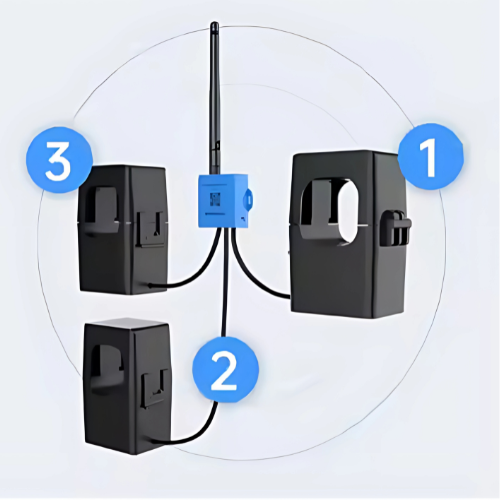

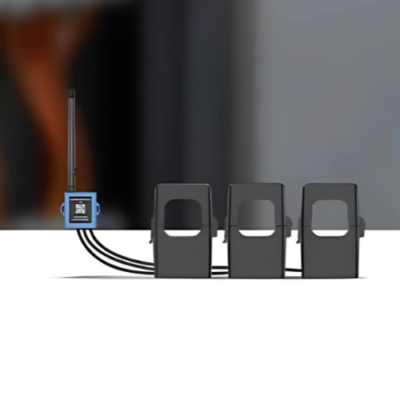

Asset Track Pro smart LoRaWAN current transformer for energy monitoring is a LoRaWAN enabled device with an innovative, non-intrusive quick installation. It accurately estimates energy consumption with a sampling rate up to 3.3kHz and calculates cumulative ampere-hours every second, helping identify energy usage patterns for effective savings.
Technical Specifications
| Chipset | SX1302 |
| Application | Smart Home |
| Detection Parameters | RMS Current |
| Sampling Frequency | 3.3 Khz |
| Working Frequency | 50 Hz To 60 Hz |
| Rated Primary Current | 500 A |
| Rated Secondary Current | 150 Ma |
| Start Current | 30 A |
| Accuracy | ±1% |
| Resolution | 1 Ma |
| Cable Length | 3.28 Ft (1 M) |
| Temperature Sensor | Measuring Range: -4 °F To 212 °F (-20 °C To 100 °C) Measuring Accuracy: ±1% |
