Description
Overview

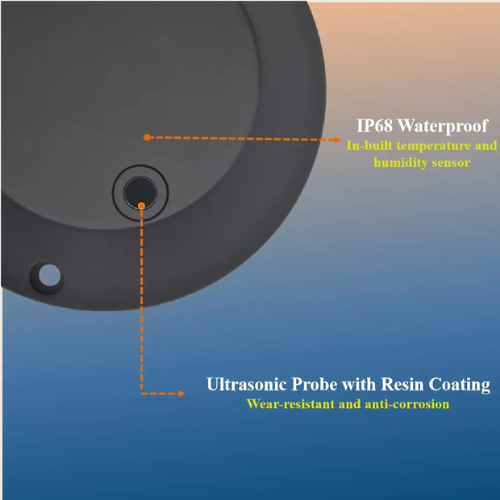

Asset Track Pro Smart Parking Occupancy Sensor with Ultrasonic Detection is designed for precise parking management, integrating advanced ultrasonic and magnetic detection with 99% accuracy. The sensor communicates via NB-IoT, LoRaWAN, and 4G, enabling remote monitoring of parking lot occupancy. This device is suitable for harsh outdoor environments, thanks to IP68 waterproofing and Bluetooth for easy configuration. The long-lasting 25,500 mAh battery supports multi-year use with efficient power consumption.
Features
- Ultrasonic and magnetic detection
- Multiple wireless options: NB-IoT, LoRa, 4G
- IP68 rating for outdoor use
- Easy surface-mount installation
- Bluetooth for configuration
- Battery life over 7 years
- 50 dB buzzer notification
Technical Specifications
| Material | ABS + PC |
| Detection Range | 2 m |
| Wireless Options | NB-IoT: B3, B5, B8, B20, B28 |
| LoRaWAN: CN470, IN865, EU868, US915, AU915, AS923 | |
| Battery | Non-rechargeable Lithium, 25,500 mAh, 3.6 V |
| Battery Life | Over 7 years |
| Waterproof Level | IP68 |
| Buzzer Notification | 50 dB |
| Bluetooth Configuration | Yes |
| Temperature Measurement | -22 °F to 185 °F (-30 °C to 85 °C) |
| Humidity Measurement | 0 % RH to 90 % RH (± 2 % RH) |
| Dimension | 7.2 in x 7.2 in x 1.5 in (18.3 cm x 18.3 cm x 3.8 cm) |
| Weight | 2.20 lb (1 Kg) |
