Description
Overview

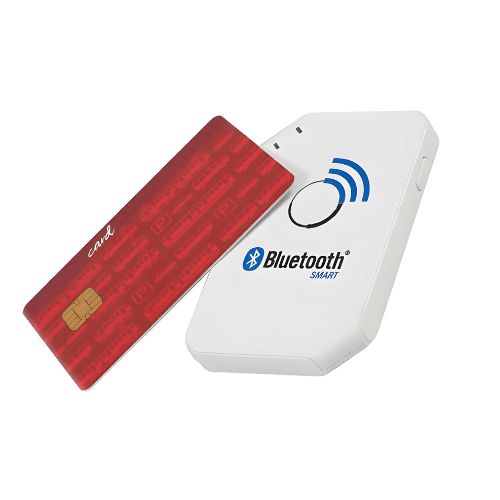

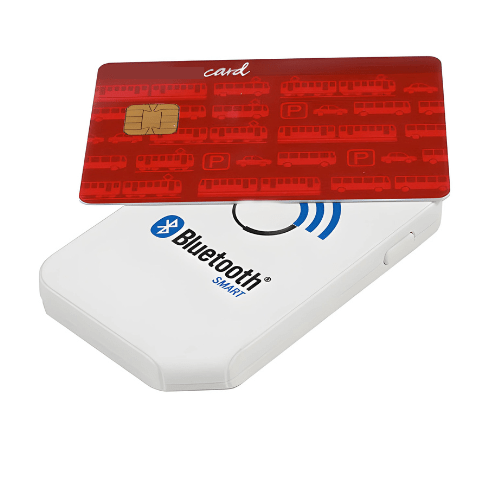

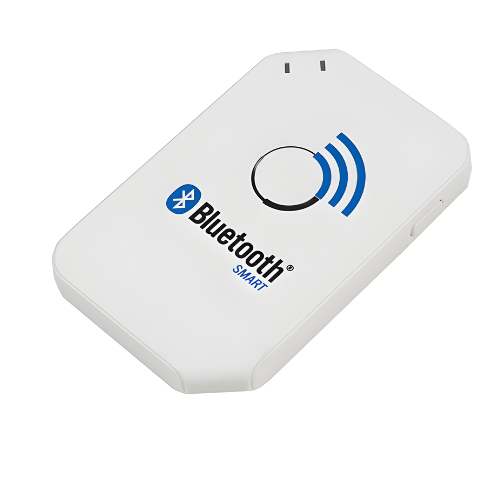

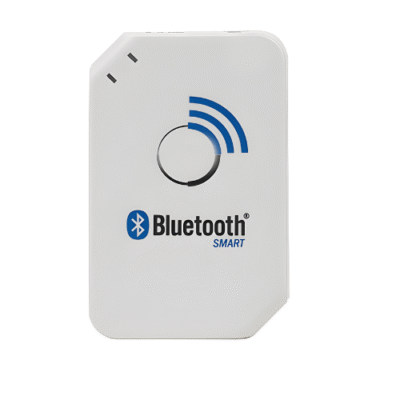

Asset Track Pro Short Range RFID Smart Card Reader is designed to facilitate on-the-go smart cards and NFC applications. It combines the latest 13.56 MHz contactless technology with Smart connectivity.
Features
- Smart Interface
- USB-Powered (PC-linked mode):
- Supports PC/SC
- Supports CT-API (through wrapper on top of PC/SC)
- USB 2.0 Full Speed Interface
- CCID Compliance
- Firmware Upgradeable
- Application Programming Interface:
- Battery-Powered:
- Powered by a Lithium-ion battery (rechargeable through PC-linked mode)
- Smart Card Reader:
- Card reader/writer mode
- Built-in antenna for contactless tag access, with reading distance of up to 60 mm (depending on tag type)
- Supports ISO 14443 Part 4 Type A and B cards
- Supports FeliCa®
- Supports ISO 18092 Tags (NFC Tags)
- Built-in anti-collision feature (only one tag is accessed at any time)
- NFC Support
Technical Specifications
| Frequency | 13.56 MHz |
| Protocol | ISO14443A/B |
| Supply Current | Max. 50 mA |
| Power Source | Lithium-ion battery (rechargeable through USB) |
| Size | 3.3465 in x 2.1260 in x 0.4252 in (85.0mm× 54.0mm ×10.8mm ) |
| Weight | 1.4112 oz (40g) |
| Operating Temperature | 32 F to 122 F (0 to 50 °C) |
| Humidity | 10% to 95% RH |
| Reading Distance | 0 to 2.3622 in (0 to 6cm) (According to the label performance and working environment) |
