Description
Application

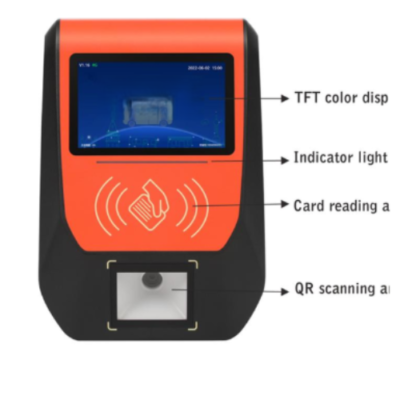

Smart bus validator can support RFID card and QR code, with GPS positioning module, support 4G, WIFI wireless communication etc. Can be used for electronic payment or card validation in following field:
- Public transport fare collection
- Scenic spots/amusement park card payment
- Balance inquiry
- Employee shuttle bus card validation
- Safety school bus system
Features
- Support wireless communication, remote connect to server management software to realize real time time-revision, black-list downloading and data collection etc.
- Support data real time uploading or USB local data collection
- Support transaction detail inquiry
- Support consumption details and statistics query, according to card No., time, operator No., etc.
Technical Specifications
| Parameters | Details |
| Operating System | Android13 |
| CPU | Quad-core 64-bit Cortex-A53 processor, main frequency up to 2.0GHz |
| GPU | Adreno 702 |
| RAM | 3GB LPDDR4X RAM |
| Memory | 32GB eMMC Flash (default)、 |
| Memory Function | |
| Data Capacity | more than 2 million detailed data for console storage, extensible |
| Blacklist | Two million，extensible, more with TF card |
| Working Environment | |
| Working Temperature | -25℃~65℃ |
| Storage Temperature | -40℃~85℃ |
| Working Humidity | 0-90%（non-condensing） |
| Physical Parameter | |
| Dimension | 240x170x74.7mm |
| Housing material | Engineering plastics |
| LCD Display | |
| Display | 5-inch LCD display, 800*480 |
| Indicator light | Red and green |
| Camera | |
| Scanning | Wide angel/QR /customized |
| Distance | 0CM -15CM |
| Voice Prompt | |
| Sound Prompt | Buzzer、Single channel loudspeaker |
| Voice Prompt | 16KHz,16bit single channel voice prompt |
| Power Supply Specification | |
| Working Voltage | DC 8V-48V with reverse connection, over voltage, over current automatic protection and automatic recovery, power off delay shutdown function. |
| RFID Function | |
| Support Type | Can read and write ISO14443 TYPE AB Electronic tag |
| Reading Distance | 0~50mm |
| Working Frequency | 13.56Mhz |
| Card Capacity | 99999999 pcs |
| Card Type | Mifare classic card, CPU card |

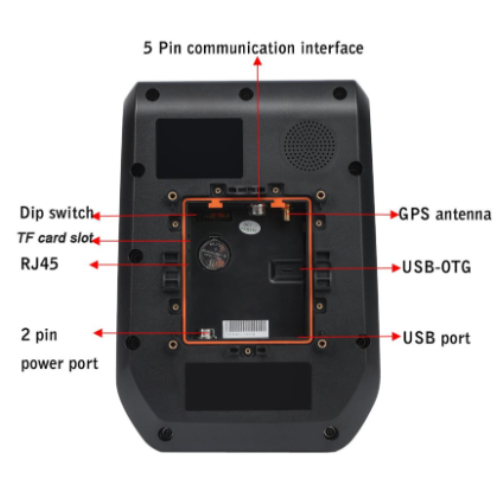

| Interface | |
| Communication Interface | USB-HOST、USB-OTG、RS485 and TTL-232 choose one |
| Relay output | 2 Relay (Max 4) this is optional function |
| Printing Function | |
| Printing module | Support external POS58printer (need 5pinaviation plug turn DB9 cable)
Optional Bluetooth printer (need to add Bluetooth module) |
| Width of receipt | 58mm |
| Positioning Function | |
| Position way | GPS, Beidou positioning, Optional GLONASS |
| Working Mode | |
| Working Mode | Stand-alone or connect to server |
| Power Consumption | |
| Power Consumption | ≤10 W |
| Communication Function | |
| Wireless Communication | 2G/3G/4G optional, 4G default |
| WIFI(optional) | Wi-Fi 802.11 a/b/g/n/ac |
| Bluetooth | BT 5.0 BLE |
| Warning Function | |
| Warning Function | Warning when card balance is insufficient or data memory is full |
