Description
Overview

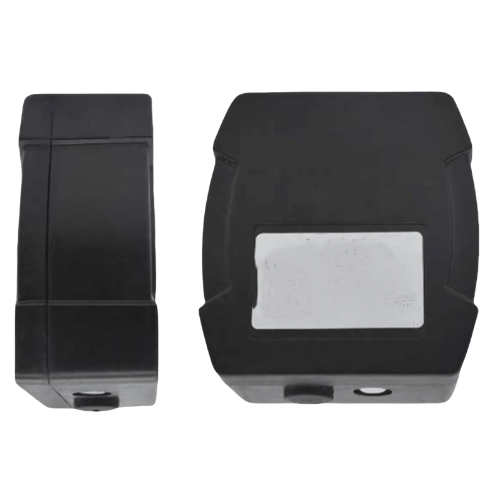

Asset Track Pro’s Smart wireless people counter with LoRaWAN & 4G connectivity is a smart people counting sensor, which can be used to count the number of people entering and leaving a place. When the number of people exceeds the limit, it will immediately pass the information to the cloud server through the built-in NB-IoT or LoRaWAN or 4G or multi-tech module. Users can check data remotely and suitable for people statistics, over limit alarm and other functions.
Features
- PIR technology
- Multi-tech wireless transmission
- Remote monitoring
- Low power consumption
- Battery powered, no wiring
- Easy installation
Technical Specifications
| Material Casing | ABS |
| Principle | PIR |
| Detection Range | 16 ft (5 m) |
| Detection Angle | 120° |
| Delay | 2 s |
| LoRaWAN | CN 470, EU 868, AS 923, AU 915, USS 915, KR 920, IN 865, RU 868 |
| NB – IoT | B3 or B5 or B8 or B20 or B28 |
| Multi-Tech | Cat-M:B1 or B2 or B3 or B4 or B5 or B8 or B12 or B13 or B14 or B18 or B19 or B20 or B25 or B26 or B27 or B28 or B31 or B66 or or B72 or B73 or B85 NB-IoT:B1 or B2 or B3 or B4 or B5 or B8 or B12 or B13 or B18 or B19 or B20 or B25 or B26 or B28 or B31 or B66 or B71 or B72 or B73 or B85 |
| Battery | 8500 mAh Lithium, 3.6 V (3-year lifespan) |
| Connectivity | LoRaWAN, NB-IoT, 4G, Sigfox, Multi-tech |
| Configuration | Bluetooth Low Energy (BLE) |
| Ingress Protection | IP68 (Waterproof & Dustproof) |
| Operating Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Storage Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Weight | 5.29 oz (150 g) |
| Dimensions | 3.15 in x 3.07 in x 1.18 in (80 mm × 78 mm × 30 mm) |
