Description
Overview

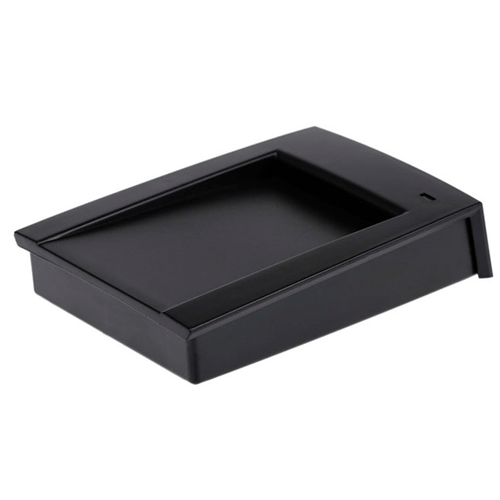

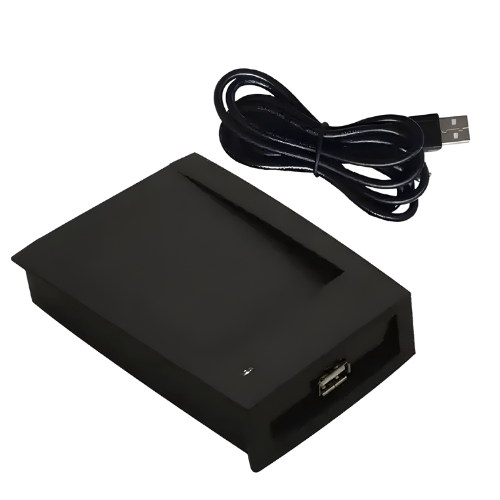

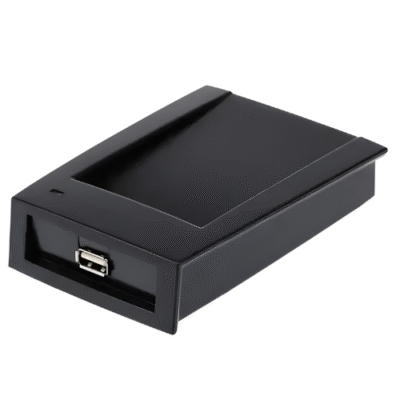

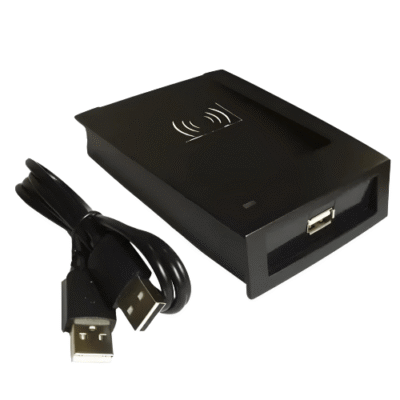

Asset Track Pro animal tracking fdx-b usb rfid card reader and writer is a member of our company’s low frequency 134.2khz or FID. The reader circuit and read-write algorithm have been carefully optimized. It has the characteristics of low power consumption, sensitive induction, stable card reading and fast card reading. With this reader software program, With the API interface program provided by this reader, the reader can be quickly integrated into various card issuing, checking in and charging systems.
Technical Specifications
| Frequency | 134.2Khz |
| Support Cards | EM4305 etc |
| Size | 4.33 in × 3.15 in × 1.02 in (110 mm × 80 mm × 26 mm) |
| Colour | Black |
| Interface | USB |
| Power Supply | DC 5V |
| Operating Distance | 0 in to 1.97 in (0 mm to 50 mm)(related to the card or the environment) |
| Service Temperature | 14 °F to 158 °F (-10 ℃ to +70 ℃) |
| Store Temperature | -4 °F to 176 °F (-20 ℃ to +80 ℃) |
| Working Humidity | Less than 90 % |
| Read Time | Less than 200 ms |
| Read Interval | Less than 0.5 S |
| Weight | About 4.93 oz (140 g) |
| Cable Length | 55.11 in (1400 mm) |
| Material Of Reader | ABS |
| Operating System | Win XP or Win CE or Win 7 or Win 10 |
| Indicators | Double Color LED (Red & Green) and Buzzer |
