Description
Features
- 8 set of (Zen4) CPU.
- Integrated I or O Controller Hub.
- 8 sets 128GB non ECC UDIMM.
- 8 sets of Micro-LP slots (Micro-LP upgradable).
- 8 sets of 2x Front NVMe U.2 Kits.
- 2200W Redundant 80+ Titanium high level power supplies.
Technical Specifications

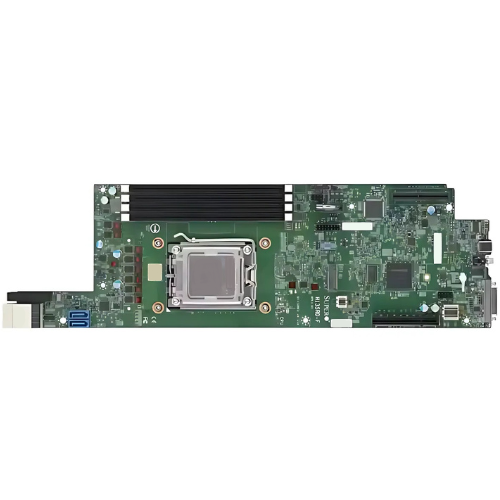

| Motherboard | Super H13SRD-F |

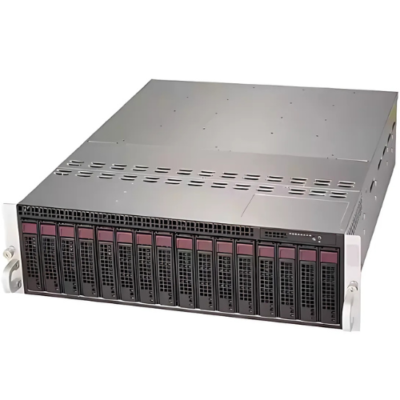

| Form Factor | 3U Rackmount |
| CPU | Single Socket AM5 (LGA-1718), AMD Ryzen Zen4 7000 Series Processors |
| Core Count | Up to 16C or 32T; Up to 16MB Cache per CPU |
| Memory | Memory Capacity: 4 DIMM slots, Up to 128: 4 X 32 GB DRAM
Memory Type: 5200 MHz DDR5 UDIMM |
| NVMe | U.2 NVMe (Native) |
| SAS | SAS3 via SAS 3908 Controller (Requires add-on card) |
| SATA | N or A (Unless Configured via a Controller) |
| Chipset | AMD Knoll – Integrated I or O Controller Hub |
| Network Connectivity | No NIC Option Supported |
| Hot Swap | 2 x (8.89 cm) 3.5 – inch Hot-Swap NVMe or SAS or SATA Drive Bays
2 U.2 NVMe Drive Support Native |
| M.2 | 1 M.2 NVMe |
| Fans | 4 X 3.15 In (8 cm) Heavy Duty Fans with Optimal Fan Speed Control |
| Air Shroud | 8 Air Shroud(s) |
| BIOS Type | AMI 128MB SPI Flash EEPROM |
| Drive Bays | 8 Set of 2x Front NVMe U.2 or SAS or SATA3 Drives w or Optional Kits |
