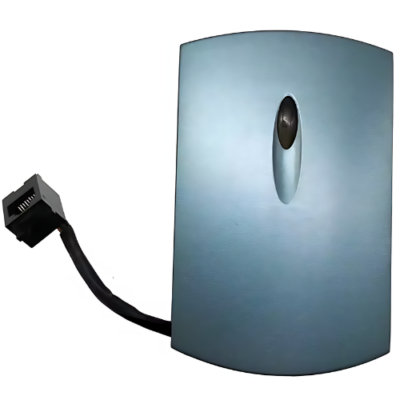

TCP/IP RFID Reader 125KHz & 13.56MHz with WIFI Communication - Asset Track Pro

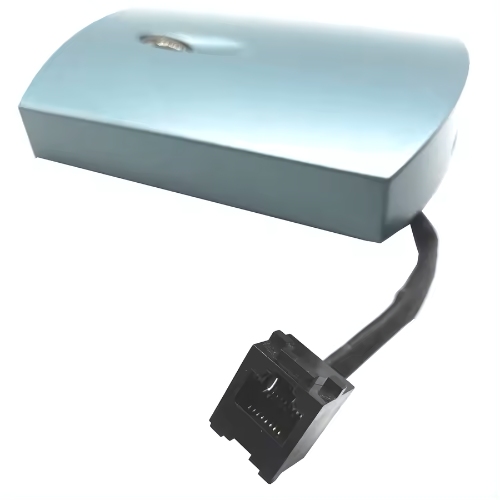

TCP/IP RFID Reader 125KHz & 13.56MHz with WIFI Communication - Asset Track Pro - Image 2

TCP/IP RFID Reader 125KHz & 13.56MHz with WIFI Communication – Asset Track Pro

RFID reader with 125KHz & 13.56MHz support, WIFI+TCP/IP, optional relay/memory, and up to 8 cm read range. Configurable for server/client modes.

SKU: ATPLF-372 Category:

Description

Features

  • Supports the operation of Type A CPU card
  • Support WIFI+TCP/IP (POE) communication
  • A buzzer and a two-color LED indicator light
  • Relay and memory are optional
  • The SOCKET interface can be set to either server mode or client mode
  • Communication interface can be set to WIFI mode or wireless network card mode or wireless routing mode
  • RFID can be set to automatically detect card upload data mode or passive read-write card mode



Technical Specifications

Frequency   13.56Mhz or 125Khz
Protocol   ISO14443A or 125Khz
Standard   ISO or IEC 14443-A, ISO 18092(optional)
Interface Options   WIFI+TCP or IP
Read And Write   Read UID only or read write
Read Distance  0in to 3.15in (0cm to 8cm) (Depending on label size and antenna technology)
Supporting Card  Mifare S50 or S70 or Ultralight, Mifare Pro, NFC, ntag213, ntag216(optional) ect
Interface  WIFI+TCP/IP(POE)
Other Function  Relay, memory for option
Power Supply  External 9V or POE power supply
Baud Rate  9600 to 115200bit or bits (Configurable, default 9600)
Operating Temperature  14°F to 122°F (-10℃ to 50℃)
Housing Material  ABS
Dimension  4.6457in x 2.9921in x 0.8661in (118mm x 76mm x 22mm)
