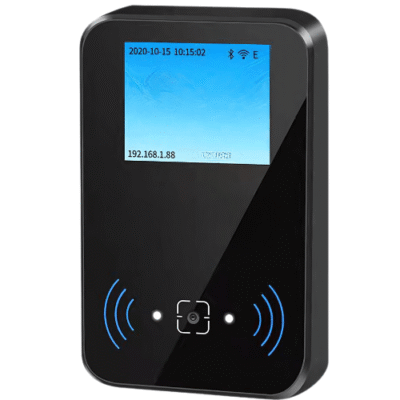

TCP RFID QR Code Network Reader 13.56 MHz - Asset Track Pro

Network RFID reader with 13.56 MHz frequency, QR code reading capabilities, and supports TCP/IP communication for enhanced network integration.

Description

This TCP RFID QR Code Access Control Display Reader has a frequency of 13.56 MHz, a dimension of 116mm×76mm×15mm and a read speed less than 0.5 s.

Frequency	13.56 MHz
Card Type	IC/NFC/Bluetooth(optional)
Read Angle	rotation 360° angle of up ± 55°，Drift angle± 55° scanning angle 72°（Horizontal）, 54°（vertical）, 84°（crosswise）
Display Screen	IPS 2-inch, 480 x 360
Working Voltage	DC 12V 2A
Read Speed	Less than 0.5s
Storage Capacity	Offline users 100,000, offline records 100,000Max Capacity
Size	116mm×76mm×15mm

This TCP RFID QR Code Access Control Display Reader has a frequency of 13.56 MHz, a dimension of 116mm×76mm×15mm and a read speed less than 0.5 s.

Frequency	13.56 MHz
Card Type	IC/NFC/Bluetooth(optional)
Read Angle	rotation 360° angle of up ± 55°，Drift angle± 55° scanning angle 72°（Horizontal）, 54°（vertical）, 84°（crosswise）
Display Screen	IPS 2-inch, 480 x 360
Working Voltage	DC 12V 2A
Read Speed	Less than 0.5s
Storage Capacity	Offline users 100,000, offline records 100,000Max Capacity
Size	116mm×76mm×15mm
