Description
Overview

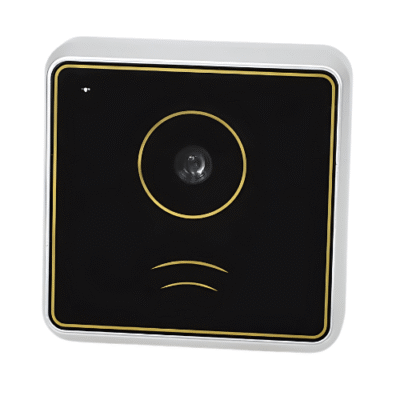

The Asset Track Pro TCP RFID QR Code Output Access Control System Card Reader has Wiegand 26/ 34 output when the product is used as a 2d code reader, which can make the traditional access control, lift control, yard products, own the 2d code access function immediately without changing the main controller. And can access legally when it must comply with the rules of the 2d code so that the traditional access control, lift control and yard products have a real CPU system security level at once and reduce system costs greatly.
Features
- Single-door access control + 2d code scanner engine + the second-generation IC card reader
- Wiegand 26/ 34 output
- 2-channel relay output
- Voice amplifier and speakers
- Offline to Open Door
- Network IP parameters, lock delay, Wiegand 26/34
- Data memory and the ferroelectric memory
- Multi Card Reader 9.RJ45 10 / 100M TCP / IP transmission, WIFI transmission or mobile phone Bluetooth transmission, Supports TCP/IP remote IAP upgrade.
- Built-in dual hardware anti-crash watchdog
- Docking DEMO Language: JAVA, C#, C++, etc.
Technical Specifications
| Communication Protocol | Support TCP / UDP / HTTP |
| Device Input | 12V DC power input, 1 line gate input |
| Wiegand Output | Wiegand 26/34 output |
| Working Current | < 600mA |
| Power Input | 9 to 18VDC |
| Symbiology | 1Do r 2D |
| Image Sensor | 752 x 480 CMOS |
| Light Source | White LED |
| Special Features | IC&QR |
| Reading Distance | 10-55mm |
