| Type |

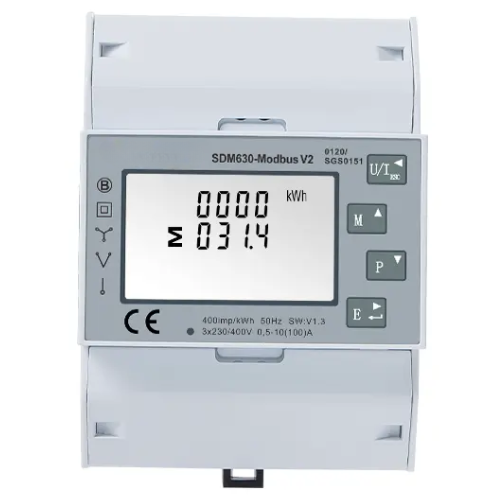

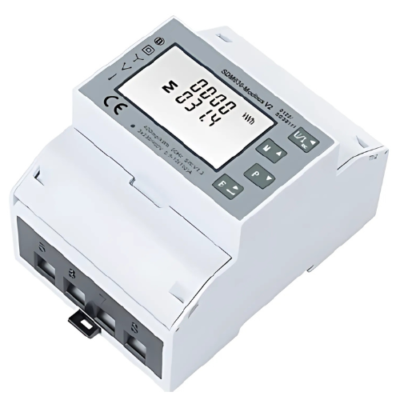

Solar PV monitoring power meter |
| Application |
Solar inverters, photovoltaic monitoring, energy management |
| Measuring Energy Range |
0 to 9,999,999.99 kWh |
| Output Voltage |
230V/400V |
| Accuracy Class |
Class 1.0 (IEC 62053-21), Class B (EN50470-1/3) |
| Measurement Parameters |
Voltage, current, power, power factor, frequency, kWh, kVarh, THD |
| Rated Voltage (Un) |
230V L-N / 120V L-N |
| Operational Voltage |
80% to 120% of Un |
| Rated Current (Ib/Iref) |
10A |
| Max Current (Imax) |
100A |
| Min Current (Imin) |
0.5A |
| Starting Current |
40mA |
| Power |
0.5% of range maximum |
| Active Energy |
IEC 62053-21 Class 1.0 / EN50470-1/3 Class B |
| Reactive Energy |
IEC 62053-23 Class 2 |
| Frequency |
0.2% of mid-frequency |
| Current |
0.5% of range maximum |
| Voltage |
0.5% of range maximum |
| Power Factor |
1% of unity (0.01) |
| Operating Temperature |
-13°F to +131°F (-25°C to +55°C) |
| Dimensions |
3.94 in x 2.83 in x 2.6 in (10 cm x 7.2 cm x 6.6 cm) |
